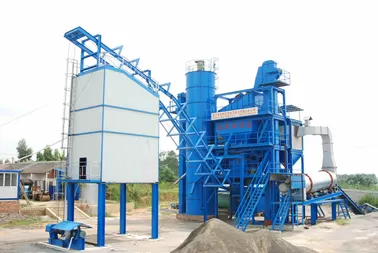

| Technical data of LCBJ1500 Asphalt Mixing Plant |
| Item |
Technical data |
| Aggregate supply system (primary batching device ) |
Hopper
(4 units)
|
Composition |
Cold aggragate bin+Belt conveyers |
| Style |
United assembly+ Frequency control feeder |
| Hopper capacity |
8M3 |
| Feed port dimension |
3.4M X 2.25M |
| Charging height |
3.4M |
|
Belt feeder
(4 units)
|
Belt width |
500MM |
| Frequency control feeder |
Imported transducer |
| Production capacity ( sand) |
120T/H |
| Aggregate |
100T/H (20MM-the aggregate diameter-40MM) |
| Power |
|
| Precision |
2 percent |
|
Hopper wall vibrator
(2 units)
|
Motor power |
0.8KW |
| Collecting Conveyor belt |
Belt width |
650MM |
| Productivity |
160T/H |
| Motor power |
4 KW |
| Feeding conveyor belt |
Belt width |
650MM |
| Productivity |
160T/H |
| Motor power |
|
| Drying drum |
Dimension |
1.95m(diameter)×7.73m(length) |
| The drum drive mode |
Friction drive by four drive wheels |
| Installation angle |
4.5° |
| Drying drum drive motor |
4 X 15 KW |
| The drum attemperator |
50mm mineral wool covered with stainless steel |
| Drying drum rotational speed |
7.3RPM |
| Burning system |
Imported oil burner (Option) |
Atomizing medium |
| Model |
ZZR1500 (Canada Digi Burner) |
| Power of blower |
15KW |
| Power of oil pump |
2.2KW |
| The gas tank |
0.6M3 |
| Gas consumption |
2.5M3/MIN |
| Air pressure |
0.6MPa |
| Heavy oil tank |
10T (with oil supply pipeline) |
| Diesel tank |
10T (with oil supply pipeline) |
| Fuel Type |
diesel oil, heavy oil and residual oil |
| Domestic oil burner (Option) |
Atomizing medium (option) |
| Model |
ZHC720 (Changsha Shengneng) |
| Heavy oil tank |
10T(with oil supply pipeline) |
| Diesel tank |
10T(with oil supply pipeline) |
| Atomizing machinery (option) |
| Model |
FRD—1000CH (Wuhan Changtian Furuida) |
| Control way |
ratio control |
| turn down ratio |
1/4 |
| Heavy oil tank |
|
| Diesel tank |
10T(with oil duct) |
| Fuel categories |
Light diesel oil, heavy oil under 150# |
| Demestic coal burner(option) |
Composition |
Grinding coal powder spraying machine, pulverized coal combustion furnace, blower, coal feeding speed motors, ignition system, electrical control cabinet, etc. |
