Export standard container 20GP or 40HQ, 40OT, FR container, in bulk, the spare parts in wooden case
Delivery Detail:
30days after the receipt of deposit
Detailed Product Description
1. Leads Melting furnace capacity 10 tons 2. High temperature exaust fume filtrration solution 3. Special and expertised hoods design keep the filtration efficiency very high. 4. Other melting furnace , steel melting furnace , leading melting furnace , aluminium melting furnace.

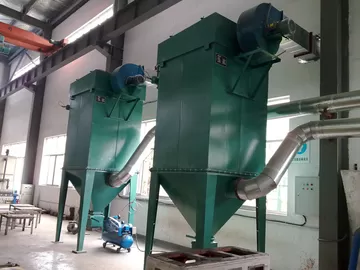

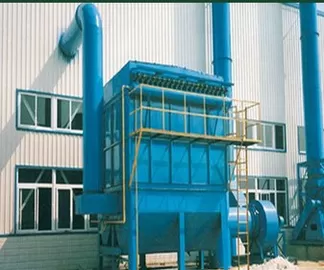

What is a baghouse?
Baghouse is a type of air pollution tool which utilizes filter bag house to divide cascade toxins from the air. Baghouses are not simply essential for manufacturing surroundings to proceed operating in a safe area but they are mandatory as well. Every plant must make sure that exhaust industrial gases, dust, and other toxins are at ranges in compliance with the (EPA) Environmental Protection Agency. Baghouses are required due to the fact the dangerous pollutants in the air of workshop locations which pass through the throat and nose or go into the lung will cause significant health difficulties.
Applications:
1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.
5.thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace
Specifications:
Model
CGQM
32-3
CGQM
32-4
CGQM
32-5
CGQM
32-6
CGQM
64-4
CGQM
64-5
CGQM
64-6
CGQM
64-7
CGQM
64-8
Air volume (m3 /h)
6900
8930
11160
13390
17800
22300
26700
31200
35700
Total filter area (m2)
93
124
155
186
248
310
372
434
496
Chamber(pcs)
3
4
5
6
4
5
6
7
8
Quantity of filter bag(pcs)
32
64
Total quantity of filter bag(pcs)
96
128
160
192
256
320
384
448
512
Pulse valve
Quantity(pcs)
3
4
5
6
4
5
6
7
8
Specification(inch)
2
2 1/2
Specification of filter bag(Dmm*Lmm)
130*2450
Filter material
Based on flue gas properties
Filtration speed(m/min)
0.8~2.0(Adjustable)
Negative pressure(Pa)
less than 6000
Resistance(Pa)
1470~1770
Inlet dust concentration
less than 200
less than 1000
Blowing pressure(Mpa)
0.5~0.7
Compressed air consumption(Nm3/min)
0.27
0.37
0.46
0.55
1.2
1.5
1.8
2.1
2.4
Air-locking unit
Adjustable
Screw conveyor
No
Adjustable
Area of heat preservation(m2)
28.3
35.8
45.1
56.8
71
96.2
120.2
142.6
176
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
5, can be achieved without stopping the machine for bags, repair does not affect normal operation.
6, by way of the upper pumping bags, bags for improved operation and running.
