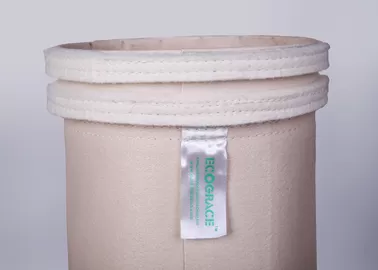

Metamax Aramid Nomex Filter Bag For Dust Collector Iron Steel Smelting Furnace

Metamax Aramid Nomex Filter Bag For Dust Collector Iron Steel Smelting Furnace

Product Details:

Place of Origin:
Brand Name:
Certification:
Model Number:

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Packaging Details:
Delivery Time:
Payment Terms:
Supply Ability:
Contact Now
Detailed Product Description
Filter Bag:Nomex Filter BagFilter Material:Nomex needle felt
Operation Temperature190-204 degree C Size of filter160 x 3030mm, 130 x 3000mm, 152 x 4500mm,etc
Specialty:High Temperature Resistant Filter BagApplication:Gypsum Plant , Metal Melting ,Asphalt Mixing
Working Life:24 -36 MonthsFilter Media:Scrim Supported , Self Supported .
NOMEX filter bag

Nomex filter bag for high temperature dust filtration

Nomex filter bag is the most popular filter bag for high temperature fume / gas  filtration  , it is widely applied in metal melting furnace fume filtration , high temperature fume fitration  in asphalt mixing ,  gypsum production , etc .

Metamax Aramid Nomex Filter Bag Iron Steel Smelting Furnace Dust Collector System

Quick details:

1. Nomex  filter media is a high temperature resistant filter media.

The instant working temperature is 240 C degree, the operation working temperature <190 C degree.

2. Application: Asphalt mixing,Tobacco leaf drying , Lime , Gypsum Production , Cement, Foundries, smelting, Carbon Black production Filtration.

3. Good and strong tensile strength and good abrasion resistant function make it with the longer working life.

Advantages :

1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204 degree C  , works well .
3. As nomex filter bags, it is largely used in Air Filtration For Carbon black proudction  process.
4. With good air permeability and also can be adjusted by customers’ specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .


Specifications :

Article Name Nomex filter bag

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring

nomex filter bags
