High temperature Nomex Dust Collector Pulse Jet Bag Filter PTFE Membrane

High temperature Nomex Dust Collector Pulse Jet Bag Filter PTFE Membrane

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: 160mmX6000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 2-4 weeks
Payment Terms: T/T ,L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Type Of Filter Bag:Pulse Jet Filter BagFilter Material:Aramid / Nomex Filter Cloth
Emission Control:30 Mg/ Nm3Application:High Temperature Gas Filtration
Specialty:Acid Resistant , Fire RetartdantSize:Diameter 120mm- 200mm , Length2~8 Meter
High Light:cement bag filter, dust collection bags

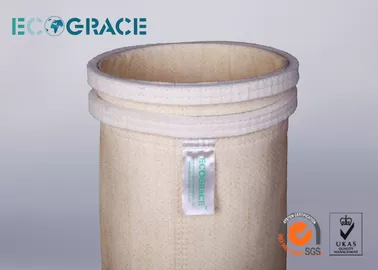

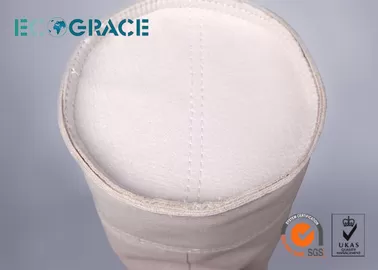

ECOGRACE Nomex Filter Bag Dust Collector Bag PTFE Membrane

ECOGRACE Nomex filter bags are  for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .NOMEX filter bag  offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working  life.

ECOGRACE dust filter bag :
Filter cloth—–Polyester, polypropylene, acrylic, aramid (nomex), pps , p84 , fiberglass needle felt with treatment of singeing, calendar, hear set, anti-static, water and oil repellent , ptfe membrane , PTFE coating .
——–Compound Felt : Fiberglass mix pps, fiberglass mix p84 or other compound felt according your request.Woven fiberglass cloth with finish treatments of anti-acid, silicone, graphite and ptfe coating , PTFE dipping , PTFE membrane etc.
——–Polyester/Polypropylene needle felt for liquid filtration. Nylon mesh for liquid filtration.

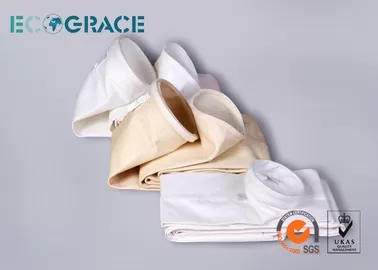

ECOGRACE Filter bag—–Filter bags for dust collector system
Filter Shaker bags / Shaker Bags
Reverse air filter bags /Filter bags for reverse air blow
Pulse Jet filter bags dust filter bag
Envelope filter bags
Filter bags for special working conditions
Poyester, polypropylene, nylon and PTFE liquid filter bag

Filter cages——-Filter Bag Cages , stainless steel cage , galvanized filter cage , organic silicon filter cage .
Filter bag sewing thread——- sewing filter bags: PTFE thread , fiberglass thread , nomex thread, polyester thread. dust filter bag

Specifications:


Article Name

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking
strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink
of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring, PTFE membrane

High temperature Nomex Dust Collector Pulse Jet Bag Filter PTFE Membrane
