nomex filter bag 1. 100% Meta-aramid / nomex fiber
2. high tensile strength 3. SGS
Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,Kiln smoke in cement plant ,steel plant blast furnace smoke and so on .Dust Collector Bags Nomex Filter Bag Baghouse Filter Bags
NOMEX filters offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long wear life.Dust Collector Bags Nomex Filter Bag Baghouse Filter Bags
Introduction :

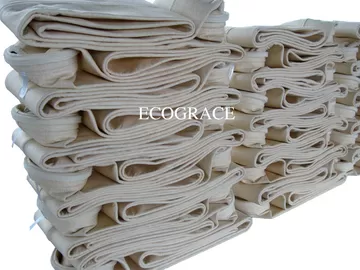

Nomex filter bags are made of 100% Meta-aramid /nomex fiber ,it is the best choice for asphalt plant dust collector , which are of metamax filter bags, aramid filter bags or baghouse filter bags.
Applications :
Being Metamax filter bags, nomex filter bags are widely used in asphalt industry, cement industry, chemical industry,Iron and steel industry, themal power industry , Aluminum industry , etc.
Features :
Nomex filter bags features excellent anti-anrasion, good anti-acid and good anti-alkali , and anti-high temperature
Advantages :
1. With high tensile strength and low tensile elongation 2. Applied in continuous temperature 204℃ , works well . 3. As nomex filter bags, it is largely used in asphalt plants. 4. With good air permeability and also can be adjusted by customers’ specific request 5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .
Working principle :
Specifications
1. Material :with100% Meta-nomex fiber 2. Scrim: with meta-aramid /nomex staple yarn 3. Finish treatment with singeing, calendering and heat setting. 4. Air permeability (l/m2/s): 150～300 5. Temperature (℃): Continue: 204, Instant: 240
Article Name
Nomex needled felt
Ingredients
Fiber
100% Nomex
Scrim
100% Nomex
Weight
g/m2
500
Thickness
mm
2.1
Density
g/m³
0.24
Permeability
L/dm2.min
150
Tensile breaking
strength(N/5cm)
Warp
≥800
Weft
≥1000
Elongation @200N/5cm
Warp
<5
Weft
<5
Maximum shrink
of 90 mins
Temperature(°C)
250
%
≤1
Service Temperature(°C)
Continuous
200
Instant
240
Finishing
Singeing, calendaring
We are manufacuturer of dust filter bags ,Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE 100% filter bags ,etc.for different industry dust filtration applications ,
Meanwhile we are design and manufacturing Baghouse dust collectors ,dust collecting system ,
It widely applied in steel plant ,power plant ,stone crushingarea ,asphalt mixing system,Dust Collector Bags Nomex Filter Bag Baghouse Filter Bags
