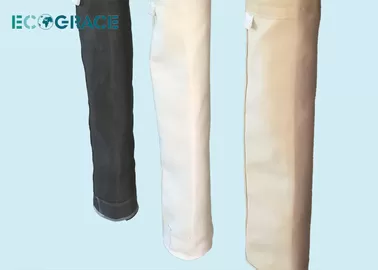

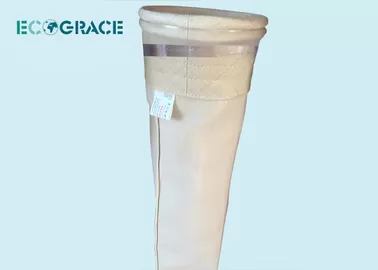

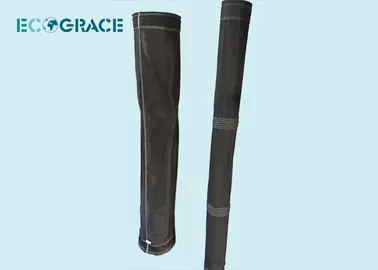

Fiberglass Dust cement bag filter / Coal Boiler / Metal Smelting Furnace

Fiberglass Dust cement bag filter / Coal Boiler / Metal Smelting Furnace

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008
Model Number: 300*12000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Polybags
Delivery Time: 2 weeks since order confirmed
Payment Terms: L/C, T/T,, Western Union, MoneyGram
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Filter Material:Fiberglass Filter CLOTHSize Of Filter Bags:292mm X 10000mm
Finishing:PTFE Membrane , Silicon TreatmentTemperature Standby:260-300 Degree C
With Supporting Ring:YESDelivery Time:2 Weeks Since Order Confirmed
High Light:aramid filter bag, non woven filter bags

PTFE Membrane Fiberglass Filter Bags in High Temperature Gas Filtration

ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing , Silicon furnace , Ferrous Silicon Manganese smelting furnace , Coal Boilers , steel mill .

Industrials Applications :

• Cement Plant

• Coal Boiler

• Wast incinerators

• Carbon black production

• Refineries

• Steel Mills

Foundary / metal smelting furnace

Metal Smelting

Non ferros alloy plant

Paper plant ,

Glass production plant


 Advantages of fiberglass filter bag:

1. Good Temperature-Resistance. Max. Temp. 280 degree C.
2. High Filtration Efficiency: up  to 99.9%
3. Excellent performance in Anti corrosion.
4.Fiberglass filters is the first  choice for incinerator smoke , smoke in industries like metallurgy, cement , carbon black, liquid boiler, coal fire boiler.
5. Longer working time:  more than 36 months.
6. Variety of finish treatments  : Coating PTFE Membrane ,PTFE Impregnation
7. Good heat resistance, flame retardant, anti-corrosion effect.
8 . Used in dust filtration of high temperature, high acidity, high alkalinity, fine high
temperature, collection of valuable metal powder , high adhesive property etc.
9. . Customized by order.
With rich practical experience and working R&D team, we can design and develop kinds of filter media to satisfy the complex and diverse working conditions.
10.  Advanced production lines: Complete testing and testing methods are the assurance to the products’ quality.

Specification of Fiberglass Filter Bag:
1. Material : Fiberglass staple fiber
2. Scrim: with fiberglass staple yarn
3. Width:≤2.2m
4. Thickness:2.3-2.7mm
5. Weight:800-900g/m2 ±10%
6. Temperature (ºC): Continue: 240, Instant: 280


Physical Properties of Fiberglass Filter Bag:

Item No. LOI (%) Weave Weight (g/m2) Mullen burst (kpa) Tensile strength (N/2.5cm) Air permeability(cm3/cm2/s·127pa) Finished Running temperature (°C)
warp weft
EFA301 > 10 double twill 780-850 > 6200 > 2400 > 2000 15-30 PTFE <260
EFI301 > 10 double twill 780-850 > 6200 > 2400 > 2000 15-30 PI <260
EFB302 > 2 1/3 twill 450-500 > 4500 > 2000 > 1200 20-36 GSP <260
EFC302 > 5 1/3 twill 340-380 > 4500 > 2000 > 1200 20-36 AR <260
EFA303 >10 1/3 twill 320-360 > 3500 > 1400 > 800 22-35 PTFE <260
EFC303 > 5 1/3 twill 900-950 > 3400 > 1200 > 700 22-35 AR <260
EFD502 > 7 satin 900-950 > 8000 > 3000 > 2400 15-25 PD <400
EFA404 > 10 double twill 800-850 > 5000 > 2600 > 2200 15-30 PTFE <260
EFE201 >1.7 satin 550-600 > 5500 > 2200 > 2000 20-35 PG <260
EFE203 > 1.7 1/3 twill 550-600 > 5500 > 2200 > 2000 20-35 PG <260


Chemical Properties of Fiberglass Filter Bag:

 Anti-acid

  Excellent

 Anti-alkali

  Excellent

 Anti-abrasion

  Excellent

 hydrolysis stability

  Good

Fiberglass Dust cement bag filter / Coal Boiler / Metal Smelting Furnace
