Cement plant PTFE fiberglass bag filter Cement kiln dust collector filter bag

Cement plant PTFE fiberglass bag filter Cement kiln dust collector filter bag

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001, SGS
Model Number: Fiberglass002

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Paper carton on pallets
Delivery Time: 15-30 work days
Payment Terms:
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Application:For Cement PlantThickness:0.9 Mm
Working Temperature:260 DegreeAbrasion Resistance:Good
Alkalis Resistance:ExcellentFinish:EPTFE Membrane
High Light:filter media bags, non woven filter bags

Detailed Product Description

Fiber: Fiberglass Weight: 775g/m2
Thickness: 0.9mm Mechanical Finish: EPTFE Member
Typical Load@ Peak: MD: 220, XD: 120 KGF/25mm Liner Shrinkage @ 230 Degree: MD: 1%, XD: 1%
Maximum Operation Tempertion: 260 Degree Maximum Surge Temperature: 280 Degree

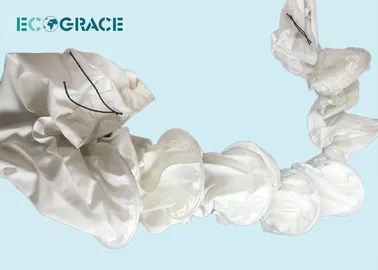

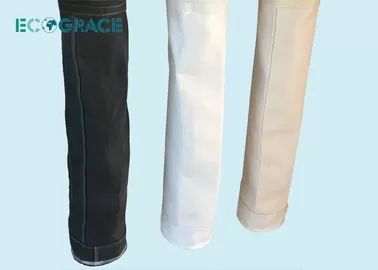

Cement plant PTFE fiberglass bag filter Cement kiln dust collector filter bag

E class-Woven Fiberglass Fabric

E-glass woven filter cloth fabrics are the optimum solution for baghouse environments with working temperatures between 150- 260 °C.  PTFE membranes can also be applied to these fabric. Our Finished woven fiberglass bags are successfully used in Reverse air baghouse, shake baghouse and pulse jet baghouse.

Features:

1. heating proof , it can work for a long time under 260°C.

 2. Good separating for powder, saving energy consumption .

3. Steady size,non shrinking under proper temperature.

4. Intensity high, obstruction more than 99% code thickness.

Industrials Applications:

• Mineral Kilns

• Power plant

• Wast incinerators

• Carbon black production

• Refineries

• Steel Mills

*Cement plant

E-Glass Fiber Finished filter cloth specification:

Item No.

LOI (%)

Weave

Weight (g/m2)

Mullen burst (kpa)

Tensile strength (N/2.5cm)

Air permeability(cm3/cm2/s·127pa)

Finished

Running temperature (°C)

warp

weft

EGFA301

> 10

double twill

780-850

> 6200

> 2400

> 2000

15-30

PTFE

<260

EGFI301

> 10

double twill

780-850

> 6200

> 2400

> 2000

15-30

PI

<260

EGFB302

> 2

1/3 twill

450-500

> 4500

> 2000

> 1200

20-36

PGS

<260

EGFC302

> 5

1/3 twill

340-380

> 4500

> 2000

> 1200

20-36

AR

<260

EGFA303

>10

1/3 twill

320-360

> 3500

> 1400

> 800

22-35

PTFE

<260

EGFC303

> 5

1/3 twill

900-950

> 3400

> 1200

> 700

22-35

AR

<260

EGFD502

> 7

satin

900-950

> 8000

> 3000

> 2400

15-25

PD

<400

EGFA404

> 10

double twill

800-850

> 5000

> 2600

> 2200

15-30

PTFE

<260

EGFE201

>1.7

satin

550-600

> 5500

> 2200

> 2000

20-35

PG

<260

EGFE203

> 1.7

1/3 twill

550-600

> 5500

> 2200

> 2000

20-35

PG

<260

Our Woven fiberglass finishments:

PGS finished:It consists blend of silicon oils, graphite & PTFE. The three finishes components combine to protect the glass fabric from abrasion, but offer only limited protection from chemical attack. the triple finish is now used primarily in cement production and metal foundry applications

PTFE finished:A ten percent add-on of PTFE particles encapsulates the glass fibers to prevent abrasion.Recommended for use with utility base load boilers operating under mild pH conditions.

Acid Resistent:Consists of acid resistant polymers,PTFE,graphite,and siliconeoils.Recommended for filteration of flue gases in industrial utility boilers and acid environments such as carbon black and fossil fuel burning power.

Triple finished: like dipforming with Slicone oils, graphite/PFTE The triple finish was one of the earliest finishes developed for filtration fabrics.

e-PTFE membranes: Coated with e-PTFE membranes

With the surface finished, it enjoys such characters as smooth, high temperature resistant .chemical corrosion repellent ,high tensile breaking strength ,easy to clean, etc.

More questions feel free to leave your message by email.

Technical Information of Fiberglass filter bag

Article Name

PTFE Membrane Fiberglass filter bag

Ingredients

Fiber

fiberglass





Weight

g/m2

775

Thickness

mm

0.8 ±0.1

Density

g/m³



Permeability

L/dm2.min

6

Tensile breaking

strength(N/5cm)

Warp

≥2000

Weft

≥2000

Elongation @210N/5cm

Warp

<6

Weft

<9

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤1

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member


Cement plant PTFE fiberglass bag filter Cement kiln dust collector filter bag
