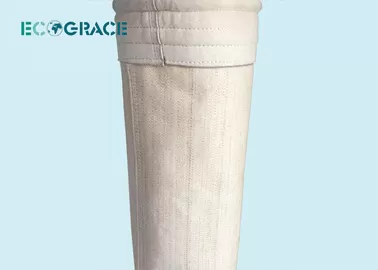

PTFE Membrane Fiberglass Filter Bags , High Temperature Resistant

PTFE Membrane Fiberglass Filter Bags , High Temperature Resistant

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: 150x6000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Filter Media:Fiberglass FeltApplication:Furnace Flue Gas Filtration
Working Temperature:260 DegreeWorking Life:36 Months
Heat Resistance:ExcellentThickness:0.9mm
Acids And Alkails.:ExcellentFinish:EPTFE Membrane
High Light:aramid filter bag, non woven filter bags

PTFE Membrane Fiberglass Filter Bags , High Temperature Resistant

Brief Introduction of PTFE Membrane Fiberglass Filter Bags:

PTFE membrane fiberglass filter bag has the best heat resistance among all the material. Its maximum operation temperature is 260 degree and maximum surge temperature is 280 degree. And also it has a good performance of abrasion resistance.

Features:

1, Fiber: Fiberglass

2, Thickness: 0.9mm

2, Mechanical Finish: ePTFE member

3, Maximum Operation Temperature: 260 degree

4, Max Surge Temperature: 280 degree

5, Heat resistance: Excellent

6, Application: Furnace Flue gas filtration

Performance:

1, Excellent heat resistance.

2, Strong ability of resisting acids and alkails.

3, Poor hydrolysis resistance.

Technical Information of Fiberglass filter bag

Article Name

PTFE Membrane Fiberglass filter bag

Ingredients

Fiber

fiberglass

Scrim

fiberglass

Weight

g/m2

775

Thickness

mm

0.8 ±0.1

Density

g/m³

0.26

Permeability

L/dm2.min

180

Tensile breaking

strength(N/5cm)

Warp

≥900

Weft

≥1300

Elongation @210N/5cm

Warp

<6

Weft

<9

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤1

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member



Technical information about other material of filter bag

Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.9

135 /150

singed on one side

Polyester,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.7

135 /150

singed on one side
oil  and  water

 repellent  finish
clean-ability

supporting  finish

Polyester+anti-static

550g/m2

PE/PE

1.7

135 /150

singed on one side ,

 anti-static

PPS high-temperature

 resistant

550g/m2

PPS/PPS

1.7

190 /200

singed on one side

PTFE high-temperature
resistant corrosion

prevention

700g/m2

PTFE/PTFE

1.2

250 /280

singed on one side ,

 corrosion prevention

Polyester+PTFE membrane

550g/m2

PE/PE

1.7

135 /150

singed on one side

,PTFE membrane

P84 high-temperature

 resistant

550g/m2

P84/P84

2.8

240 /260

singed on one side

 corrosion prevention

FMS high-temperature

 resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side

Brief Introduction of Our Manufactory

We are a manufactory, which was set up on 2008. We have a team of technical engineers, who have more than ten years experience in the filter bags and dust collector. Our products enjoy a good reputation in and out of our country for highly qualified and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide “DIY” service, which means we will design a dust collector according to customer’s working condition. What’s more, we still have oversea service available.
