1/3 Twill weaving Dust Collector Filter Socks Non Ferrous Metal Smelting Filter System

1/3 Twill weaving Dust Collector Filter Socks Non Ferrous Metal Smelting Filter System

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001,SGS
Model Number: 292mmX10000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Application:Metal Smelting Furnace Flue Gas FiltrationHeat Resistance:Excellent
Working Temperature:260 DegreeWorking Life:36 Months
Size:Diameter 292mm X Length 10000mmAbrasion Resistance:Good
High Light:filter media bags, non woven filter bags

1/3 Twill weaving Fiberglass Filter BagsNon Ferrous Metal Smelting Filter System

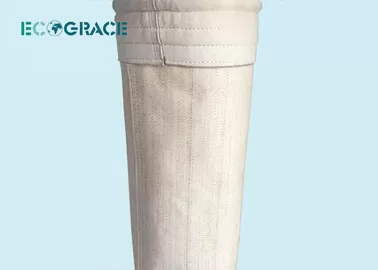

ECOGRACE  Fiberglass Filter Bags:

ECOGRACE Fiberglass filter bag is one of the best filter bags, which has a good performance of abrasion resistance for its strong strength. Fiberglass filter bag has a long service life .  What’s more, its heat resistance performance is also the best compared to other materials.

Detailed Product Description

Fiber:

Fiberglass

Weight:

750g/m2

Thickness:

0.8±0.1mm

Typical Load@ Peak:

MD: 220, XD: 130

Liner Shrinkage @ 230 Degree:

MD: 1%, XD: 1%

Maximum Operation Tempertion:

260 Degree

Maximum Surge Temperature:

280 Degree





Brief Introduction of Fiberglass Filter Bags:

ECOGRACE Fiberglass filter bag is one of the best filter bags, which has a good performance of abrasion resistance for its strong strength. Fiberglass filter bag has a long service life and it won’t damage a lot in the bad environment. What’s more, its heat resistance performance is also the best compared to other materials.

Characteristics of Fiberglass Filter Bag:

1, Fiber: Fiberglass

2, Thickness: 0.8mm

3, Max Operation Temperature: 260 degree

4, Max Surge Temperature: 280 degree

5, Heat resistance: Excellent

6, Application: Furnace Flue gas filtration

Performance:

1, Excellent performance of high temperature resistance.

2, Well strong alkalis reistance.

3, Poor hydrolysis resistance.

4, Long serivce life.

Technical Information of Fiberglass filter bag

Article Name

Fiberglass filter bag

Ingredients

Fiber

Fiberglass

Scrim

fiberglass

Weight

g/m2

750

Thickness

mm

0.8±0.1

Density

g/m³

0.25

Permeability

L/dm2.min

160

Tensile breaking

strength(N/5cm)

Warp

2500

Weft

≥3000

Elongation @210N/5cm

Warp

<8

Weft

<10

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤2

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member



Technical information about other materials

Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.9

135 /150

singed on one side

Polyester,oil and

 water ,
dirt repellent finish filter

550g/m2

PE/PE

1.7

135 /150

singed on one side
oil  and  water  repellent

 finish
clean-ability  supporting

 finish

Polyester+anti-static

550g/m2

PE/PE

1.7

135 /150

singed on one side ,

anti-static

PPS high-temperature

 resistant

550g/m2

PPS/PPS

1.7

190 /200

singed on one side

PTFE high-temperature
resistant corrosion

prevention

700g/m2

PTFE/PTFE

1.2

250 /280

singed on one side ,

corrosion prevention

Polyester+PTFE

membrane

550g/m2

PE/PE

1.7

135 /150

singed on one side,

PTFE membrane

P84 high-temperature

 resistant

550g/m2

P84/P84

2.8

240 /260

singed on one side

corrosion prevention

FMS high-temperature

 resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side

Technical Information about Other fIlter Bags

 Dust collector

filter bag

Continuous

temperature

Peak

Temperature

Description

Resistance

 to Acids

Resistance

 to Alkalis

Resistance to

Oxidation

PH Value

PP filter bag

90℃

95℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

125℃

140℃

DT

good

good

good

3~11

Polyester dust

filter bag

150℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

200℃

PPS

Excellent

excellent

moderate

1~14

Polyimid

 filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100%

filter bag

250℃

280℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass

 Filter bag

260℃

300℃

BQ

good

good

good

3~11



Brief Introduction of Our Manufactory

We are a manufactory,and ECOGRACE has a team of technical engineers, who have more than ten years experience in the filter bags and dust collector. Our products enjoy a good reputation in and out of our country for highly qualified and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide “DIY” service, which means we will design a dust collector according to customer’s working condition. What’s more, we still have oversea service available.
