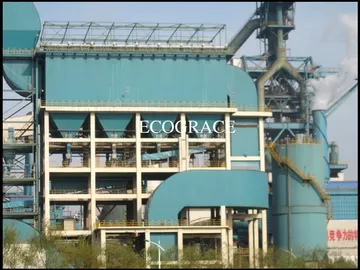

High Performance Bag House Filter Dust Collector Equipment In Chemical Industry
Description:
Asphalt mixing site special design Bag filter equipment, A high collection efficiency, small footprint, stable, reliable performance, easy maintenance of large bag filter equipment.
PJDMC series of large pulse length bag filter is our technical personnel from domestic and foreign advanced technologies based on Asphalt mixing site ,thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter. It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter dust removal equipment.
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust. 2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low. 3, the inlet and outlet air duct layout compact, air resistance. 4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve. 5, can be achieved without stopping the machine for bags, repair does not affect normal operation. 6, by way of the upper pumping bags, bags for improved operation and running.
Applications:
1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.
Specifications:
Model
CGQM
32-3
CGQM
32-4
CGQM
32-5
CGQM
32-6
CGQM
64-4
CGQM
64-5
CGQM
64-6
CGQM
64-7
CGQM
64-8
Air volume (m3 /h)
6900
8930
11160
13390
17800
22300
26700
31200
35700
Total filter area (m2)
93
124
155
186
248
310
372
434
496
Chamber(pcs)
3
4
5
6
4
5
6
7
8
Quantity of filter bag(pcs)
32
64
Total quantity of filter bag(pcs)
96
128
160
192
256
320
384
448
512
Pulse valve
Quantity(pcs)
3
4
5
6
4
5
6
7
8
Specification(inch)
2
2 1/2
Specification of filter bag(Dmm*Lmm)
130*2450
Filter material
Based on flue gas properties
Filtration speed(m/min)
0.8~2.0(Adjustable)
Negative pressure(Pa)
less than 6000
Resistance(Pa)
1470~1770
Inlet dust concentration
less than 200
less than 1000
Blowing pressure(Mpa)
0.5~0.7
Compressed air consumption(Nm3/min)
0.27
0.37
0.46
0.55
1.2
1.5
1.8
2.1
2.4
Air-locking unit
Adjustable
Screw conveyor
No
Adjustable
Area of heat preservation(m2)
28.3
35.8
45.1
56.8
71
96.2
120.2
142.6
176
Competitive Advantage:
1. It has modern design, it uses lower gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.
2. It uses long filter bags and it has smaller floor area in case of equal processing capacity, therefore it is more convenient for reconstruction of old factories.
3. It uses separate chamber offfline dust clearing with high efficiency and few secondary flour dust attachment, in the meantime, it can effectively reduce the equipment energy consumption, the fatigue level of filter bag and pulse valve is correspondingly reduced and the service life of filter bag and vane is prolonged by several times and equipement operation cost is remarkably reduced.
4. The overhaul and bag replacement can be carried out for separate chambers under the condition that system blower and system run normally.
