Nomex Baghouse Pulse Jet Bag Filter For High Temperature Gas Filtration
High temperature gas Filtration BAG FILTER:
Model No. :GMC476
Application: Asphlat Mixing Plant
Dust type: High Temperature Smoke
Air flow :30000m³/h-55000m³/h
Gas Temperature :160 C degree -190 C degree
Filter bag chosen: Nomex Filter Bags
Working life of filter bag:3 years
Running resistance: 1500pa

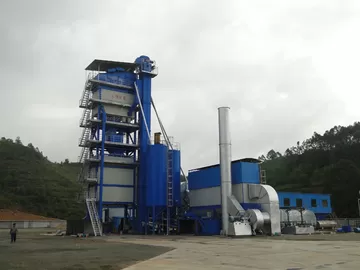

ECOGRACE BAG FILTER WORKED In FOLLOWING ASPHLAT MIXING PLANT WORKING CONDITIONS:
GLB1500
Technical data of GLB1500 Asphalt Mixing Plant
Item
Technical data
Aggregate supply system (primary batching device )
Hopper (4 units)
Composition
Cold aggragate bin+Belt conveyers
Style
United assembly+ Frequency control feeder
Hopper capacity
8M3
Feed port dimension
3.4M X 2.25M
Charging height
3.4M
Belt feeder (4 units)
Belt width
500MM
Frequency control feeder
Imported transducer
Production capacity ( sand)
120T/H
Aggregate
100T/H (20MMthe aggregate diameter40MM)
Power
2.2KW
Precision
±2
Hopper wall vibrator (2 units)
Motor power
0.8KW
Collecting Conveyor belt
Belt width
650MM
Productivity
160T/H
Motor power
4 KW
Drying drum
Dimension
1.95m(diameter)×7.73m(length)
The drum drive mode
Friction drive by four drive wheels
Installation angle
4.5°
Drying drum drive motor
4 X 15 KW
The drum attemperator
50mm mineral wool covered with stainless steel
Drying drum rotational speed
7.3RPM
Burning system
Imported oil burner (Option)
Atomizing medium
Model
ZZR1500 (Canada Digi Burner)
Power of blower
15KW
Power of oil pump
2.2KW
The gas tank
0.6M3
Gas consumption
2.5M3/MIN
Air pressure
0.6MPa
Heavy oil tank
10T(with oil supply pipeline)
Diesel tank
10T(with oil supply pipeline)
Fuel Type
diesel oil, heavy oil and residual oil
Domestic oil burner (Option)
Atomizing medium (option)
Model
ZHC720
Heavy oil tank
10T(with oil supply pipeline)
Diesel tank
10T(with oil supply pipeline)
Atomizing machinery (option)
Model
FRD1000CH (
Control way
ratio control
turn down ratio
1:4
Heavy oil tank
10T(with oil duct)
Diesel tank
10T(with oil duct)
Fuel categories
Light diesel oil, heavy oil under 150#
Secondary dust collecting( Bag dust collector) (Option)
Type
Reflux pulse spraying dust collecting system
Bag material
NOMEX weight 500g/m2,removing dust easily
Bag quantities
360
Dust collecting area
500
Dimension
12 MX1.9MX5M
Compressed air consumption
2.6M3/MIN
Compressed air pressur
0.4~0.7Mpa
Normal working temperature
100175
Instantaneous max heatresisting
216
Air compressors
Type
LB200350
Air exhaust pressure
0.8Mpa
Air consumption
2.85M3/MIN
Gas storage tank
0.6M3
Dust recycling system
Hanging style rotation loader power
0.75KW
screw conveyer powert
4KW
Inside spin power
4KW
Recycle powder hoist
4KW
draught fan
Fan motor power
110KW
fan wind air volume
3710068250 m3/h
fan wind pressure
24903640 Pa
Auxiliary draught fan
Fan motor power
4kw
fan wind air volume
27505060 m3/h
fan wind pressure
10001460 Pa
The exit dust exhaust concentration
<100mg/Nm3
Hot aggregate elevator
Type
duplex chain hopper
Chain form
double chain ,automatic tensioner
Hoisting capacity
140T/H
Vibrating screen
Vibration frequency
19Hz
Amplitude
6~8MM
Screen areas
18.6 M2
Production capacity
≥140T/H
The sieving aggregate
4 kinds
The screen area
15.87
Screen mesh specification
28×28, 16×16, 10×10, 5×5 (mm)
Hot aggregate bin
Type
4 compartment hoppers
Hopper volume
33m3
Weighing system
Hot aggregate scale hopper
volume
2400kg
Static measuring precision
±0.5%
Weighting modularity sensor
HM-EIII-1 (Meidiya)
Powder weighing hopper
volume
300kg
Static measuring precision
±0.5%
Weighting modularity sensor
HM-E-0.2 (Meidiya)
Powder screw conveyer
LSL273×2380×4
Asphalt weighing hopper
volume
225kg
Static measuring precision
±0.25%
modularity sensor
HM-E-0.2 (Meidiya)
The mixer
Type
Two horizontal forced paddle type mixer
Volume
1500kg /batch
Drive motor power
30KW×2
Monitor room
Overall dimension
5.19MX 2.25 MX 2.5 M
Advantage of ECOGRACE BAG FILTER :
1. ECOGRACE BAG FILTER, it has taken the temperature gas to lower temperature gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.
2. The longer filters dust collector take smaller area which will increase the processing capacity, therefore it is more convenient for reconstruction of old factories.
3. ECOGRACE take separate chamber off line dust cleaning in bag filter design and it is with high efficiency and few secondary flour dust attachment, meanwhile it can effectively save the energy consumption. Such design effectively protect the filter bags and pulse valve and save the operation and maintenance cost for the dust collector system.
4. The filter bags will be replaced without stop the filtration system.
5. ECOGRACE Dust Collector with ECOGRACE made filters which is made with snap band with good sealing, easy for assemble and replacement and good tightness.
6. ECOGRACE take Air leaking detecting with oil and to keep all the system air leaking <0.5%.
7. Our Bag Filter Dust Collector is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.
