Dust Collection Systems Industrial Dust Extractor Filter Unit 6000 M3/ H
Detailed Product Description
Type Of Dust Collector:
Dust Collector Filter Unit
Cleaning Type:
Pulse Jet Cleaning, On Line Filter Cleaning
Gas Temperature:
Ambient To High Tempreature
Material:
4mm Steel Plate
Air Flow:
3000-30000M3/H
Filter Speed:
1.20-1.50 M/min
Filter Bags:
Different Working Condition Will Have Diffrent Equiped
Shape:
Sigle House Dust Collector
Dust Collection Systems Industrial Dust Extractor for Metal Grinding / Sawing / Sending
Filter Unit Industrial dust collector for metal grinding / sawing / sending / polishing process.
We customize desgin and produce for different gas working condition and different type of gas pollutions .Here , introduce our sigle baghouse dust collector for general dust source in process of polishing , sanding , grinding , milling , sawing , etc . The air flow is usually from 3000 M3/ h to 30000 M3/h.
Brief Introduction :

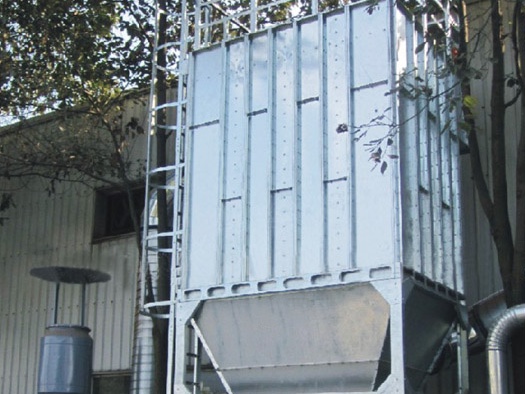

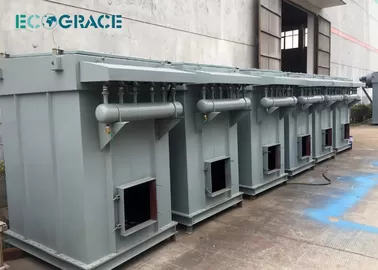

ECOGRACE single baghouse dust collector Filter Unit is generally with smaller air flow from 2000 M3/H to 30000 M3/H , which is small in outside dimention , and we will design the most reasonable dimention for easy container loading and shipping , no need more installatino work at production site . It will be assembled in whole and put into the container , you can directly start when take out from container .
Dust Collector technical specification :
Model No.
EDMC 120
Air Flow
10000-12000 M3/H
Filter speed
1.2 M/min
Temperature of the gas
Room ambient
Filtration area
120 M2
Filter media
Polyester filter bag
Filter bag size
D130X3000
Compressed air consumption
0.5-0.7 M3/min
Pulse valve size
1.5 inch
Resistance
<1000 pa
Working Principle of dust collection systems :
1. The compostion of small dust collector unit :
Assmebled Filter Unit , Fan , PLC , air compressor . Rotary dust discharging.
2. The filter cleaned by solenoid valve pulse. ASCO and GOYEN is the regular band we take .
3. Filter cage and filter bag will be fit in the assembled baghouse .
4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .
Advantage of ECOGRACE dust collector Filter Unit :
1. Easy operation maintenance.
2. Assembled when EX work from our factory and no more intallation work needed.
3. High filtration efficiency up to 99.99% , low emission < 30 mg/ M3.
4. Energy saving
5. Lower system resistance up to < 1000 pa.
6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.
