Compact Air Flow Industrial Dust Collector Bag Filter with Nomex Filter Bags

Compact Air Flow Industrial Dust Collector Bag Filter with Nomex Filter Bags

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS approved
Model Number: EDMC260

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: steel frame / container
Delivery Time: 20-40working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / months
Contact Now
Detailed Product Description
Application:For Asphalt Mixing ,etc.Air Flow:50000 M3/h
Filter Speed:1.2m/minFiltration Area:900m2
Emission:< 30 Mg/ M3Filtration Efficiency:Up To 99.9%
High Light:industrial dust collector systems, dust collector cartridge filter

Compact Air Flow Industrial Dust Collector Bag Filter with Nomex Filter Bags

Detailed Product Description

Type Of Dust Collector:

Dust Extration System

Cleaning Type:

On Line Filter Cleaning

Gas Temperature:

High Temperature

Material:

Carton Steel

Air Flow:

30000 M3/h

Filter Speed:

1.20-1.50 M/min

Filter Bags:

Nomex Filter Bags

Shape:

Baghouse Dust Collector

Asphalt mixing industrial dust collector bag filter with NOMEX filter bags,  The air flow for asphalt mixing site dust collector is usually from 20000 M3/H to  60000 M3/h.   The fumes / smoke generated from asphalt batching process is high temperature up to 220 degree C instant . The key filtration solution filter media is Nomex filter bag. We will take high temperature resistant painting inside and outside of dust collector to ensure the longer working life of equipment . There will be bypass dust inside of dust collector equipment to protect the Nomex filter bags from fumes temperature over 240 degree C .

Brief Introduction :

ECOGRACE provide special design for asphalt mixing / batching site dust collector system .

We will have high efficiency solution for the high temperature fumes .

We will have the good heat prevention outside the dust collector equipment .

We will  have Nomex filter bags working life longer than 3 years in our dust collection system .

Dust Collector  technical specification :

Model No.

EDMC260

Air Flow

50000 M3/H

Filter  speed

1.2 M/min

Temperature of the gas

High temperature

Filtration area

900  M2

Filter media

Nomex filter bag

Filter bag size

D130X4500

Compressed air consumption

0.5-0.7 M3/min

Pulse valve size

2.5  inch

Resistance

<1000 pa

Working Principle of  Industrial dust collector :

1. The compostion of Asphalt mixing site dust collector   :

Bag house Dust Collector , Rotary valve , screw conveyor , air compressor  ,  Fan , PLC .

2. The filter  cleaned  by solenoid valve pulse.  ASCO and GOYEN is the regular band we take .

3.  Filter cage  and filter bag will be matech perfectly to enlong the working life of dust collector equipment .

4. Good and reasonable design of dust collector will reach a very different working result for the asphalt mixing site .

Advantage of ECOGRACE smaller dust collector Filter Unit :

1. Easy operation maintenance.Single baghouse .

2. Assembled when EX work from our factory and no more  intallation work needed.

3. High filtration efficiency up to 99.99% , low  emission < 30 mg/ M3.

4. Energy saving

5. Lower system resistance up to < 1000 pa.

6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.

ECOGRACE project show :

Low Emission Industrial Dust Collector Bag Filter with Nomex Filter Bags

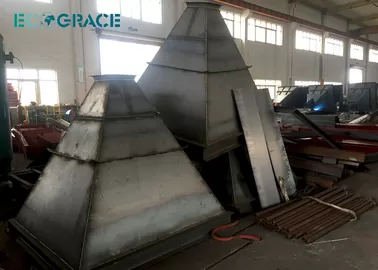

Production and shipping  :

Low Emission Industrial Dust Collector Bag Filter with Nomex Filter Bags
