Woodworking Industrial Dust Collection System / Electronic Furnace Dust Collectors

Woodworking Industrial Dust Collection System / Electronic Furnace Dust Collectors

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS
Model Number: EDMC 680

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: steel frame / container
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / months
Contact Now
Detailed Product Description
Application:For Blast Furnace / Shaft FurnaceAir Flow:3000-30000 M3/H
Filtration Area:2000 M2Compressed Air Consumption:0.5-0.7 M3/min
Emission:< 30 Mg/ M3System Resistance:< 1000 Pa
High Light:dust collection systems, dust collector cartridge filter

Woodworking Industrial Dust Collector Equipment / Electronic Furnace Dust Collectors

Detailed Product Description

Type Of Dust Collector:

Dust Collection Equipment

Cleaning Type:

Pulse Jet Cleaning

Gas Temperature:



Carbon Steel

Air Flow:


Filter Speed:

1.0-1.2 M/min

Filter Bags:

Homo Acrylic Filter Bags / Nomex / PE Filter Bags


Pulse Jet

Steel plant electronic furnace Industrial dust collection equipment . For different working condition in steel plant  , we will provide special and expert filtration solutions for the dust collection / dust extration systems for  the fumes generated from the melting furnace , sintering furnace , blast furnace / shaft furnace ,induction furnace .

Brief Introduction :

ECOGRACE steel plant electronic furnace dust collector systems always with  air flow from 30000M3/H to 400000 M3/H ,  We provide  the key solution for both ambient temperature and high temperature . We will design the high efficiency hoods for good suction , and also the ducting works .

Dust Collector  technical specification :

Model No.

EDMC 120

Air Flow

100000 M3/H

Filter  speed


Temperature of the gas


Filtration area

2000 M2

Filter media

Polyester filter bag

Filter bag size

D160 x L 6000

Compressed air consumption

0.5-0.7 M3/min

Pulse valve size

 2.5  inch


<1000 pa

Working Principle of  steel plant Dust collector Filter Unit :

1. The compostion of small dust collector unit  :

Baghouse dust collection system ,

Fan suction system ,

Dust discharging and dust conveyor systems

2. The filter cleaned  by solenoid valve pulse imported from US or Europe.

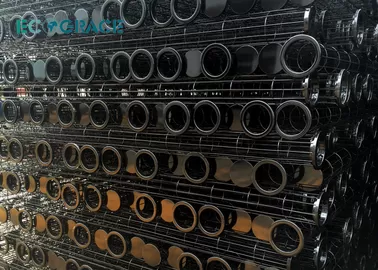

3. Filter cage  and filter bag will be fit in the assembled baghouse .

4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .

Advantage of ECOGRACE smaller dust collector Filter Unit :

1. Easy operation maintenance.

2. Lower resistance , energy saving .

3. High filtration efficiency up to 99.99% , low  emission < 30 mg/ M3.

5. Lower system resistance up to < 1000 pa.

6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.

ECOGRACE project show :

Industrial Dust Collection Equipment / Electronic Furnace Dust Collectors

Production and shipping  :

Industrial Dust Collection Equipment / Electronic Furnace Dust Collectors
