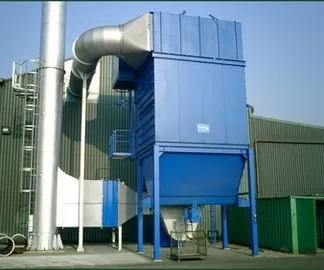

Air Filter Dust Collector Industrial Bag Filter Dust Removal Equipment
ECOGRACE are the leading manufacturer specialized in designing and manufacturing baghouse dust collectors in China with the over 10 years experience of manufacturing high quality bag filter dust collector. We provide solution for standard working conditions bag filter dust collector, and special solutions for high pressure, high temperature and high corrosive working conditions.
ECOGRACE Bag Filter Dust Collector is widely applied in Asphalt mixing site, cement plant, gypsum plant, steel plant, coal fired boiler, etc.
ECOGRACE always providing the cost-effective filtration solutions for all of our clients.
About the series of Low Pressure Long Bag Pulse Dust Collector
Description:
Cement kiln applied Bag filter ,long bag pulse jet ,high efficiency,
A high collection efficiency, small footprint, stable, reliable performance, easy maintenance of large bag filter equipment.
It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter dust removal equipment. DMC series of large pulse length bag filter is our advanced technologies based on thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter.
Applications:
1. iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.
5.thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace
Specifications:
Model
CDMC154-2X11
CDMC154-2X12
CDMC154-2X13
CDMC154-2X14
CDMC154-2X15
Treatment wind capacity (m3/h)
488000
732000
532000
798000
577000
865000
621000
931000
665000
1000000
Filtering area (square meters)
10208
12064
12064
12992
13920
Filter bag quantity (pcs)
diameter 130X6000mm
3388
4004
4004
4312
4620
Filtration velocity (m/min)
0.8-1.2
Resistance (Pa)
less than 1500
Entrance dust content (g/N m3 )
less than 1000
Exit emission concentration (mg/ N m3 )
less than 50 (filter bags made in China);less than 30(filter bags made in foreign countries)
Negative pressure sustained by dust collector (Pa)
8000
Dust cleaning pressure
Pressure (Mpa)
0.2-0.6 ( diameter 3 inch Flood Pulse Valve used)
Compressed air
Gas consumption (m3/min)
5.0
5.0
5.5
6.0
6.0
Power consumption (KW)
30
30
30
30
30
Equipment weight (T)
311.7
340.6
369.2
398.5
424.7
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust. 2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low. 3, the inlet and outlet air duct layout compact, air resistance. 4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve. 5, can be achieved without stopping the machine for bags, repair does not affect normal operation. 6, by way of the upper pumping bags, bags for improved operation and running.
