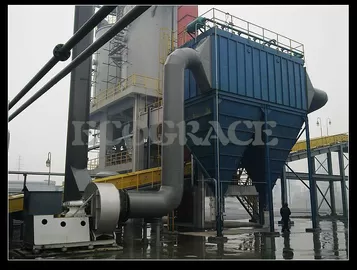

Compact Pulse Dust Collector Equipment For Cement Plant / Woodworking
ECOGRACE Bag Filter Dust Collector is widely applied in Asphalt mixing site, cement plant, gypsum plant, steel plant, coal fired boiler, etc.
ECOGRACE always providing the cost-effective filtration solutions for all of our clients.
About the series of Low Pressure Long Bag Pulse Dust Collector
Advantageous characteristics of :
1. ECOGRACE BAG FILTER DUST COLLECTOR, it has taken the temperature gas to lower temperature gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.
2. The longer filters dust collector take smaller area which will increase the processing capacity, therefore it is more convenient for reconstruction of old factories.
3. ECOGRACE take separate chamber off line dust cleaning in bag filter dust collector design and it is with high efficiency and few secondary flour dust attachment, meanwhile it can effectively save the energy consumption. Such design effectively protect the filter bags and pulse valve and save the operation and maintenance cost for the dust collector system.
4. The filter bags will be replaced without stop the filtration system.
5. ECOGRACE Dust Collector with ECOGRACE made filters which is made with snap band with good sealing, easy for assemble and replacement and good tightness.
6. ECOGRACE take Air leaking detecting with oil and to keep all the system air leaking <0.5%.
7. Our Bag Filter Dust Collector is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.
Technical parameters:
Model
GDMC154-2X11
GDMC154-2X12
GDMC154-2X13
GDMC154-2X14
GDMC154-2X15
Treatment wind capacity (m3/h)
488000
732000
532000
798000
577000
865000
621000
931000
665000
1000000
Filtering area (square meters)
10208
12064
12064
12992
13920
Filter bag quantity (pcs)
diameter 130X6000mm
3388
4004
4004
4312
4620
Filtration velocity (m/min)
0.8-1.2
Resistance (Pa)
less than 1500
Entrance dust content (g/N m3 )
less than 1000
Exit emission concentration (mg/ N m3 )
less than 50 (filter bags made in China);less than 30(filter bags made in foreign countries)
Negative pressure sustained by dust collector (Pa)
