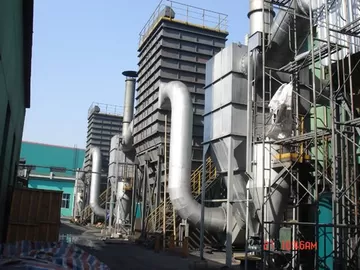

Cement mill bag filter ,high capacity,energy saving design.
Baghouse is a type of air pollution tool which utilizes filter bag house to divide cascade toxins from the air. Baghouses are not simply essential for manufacturing surroundings to proceed operating in a safe area but they are mandatory as well.
Every plant must make sure that exhaust industrial gases, dust, and other toxins are at ranges in compliance with the (EPA) Environmental Protection Agency. We are required due to the fact the dangerous pollutants in the air of workshop locations which pass through the throat and nose or go into the lung will cause significant health difficulties.
Grace Filter Dust Collector Filters are usually come in three distinct forms.
1. shaker dust collectors. The shaker collector filter bag house are shaken to vacant the powder with the use of a motor driven mechanical rod. Shaker collector filter bag house have a cleaning action created in intervals when the shaker baghouse is off line. The shaker sort of baghouse filter is considerably limited in its features. This can be remedied by substituting the usually unproductive physical shaker with an acoustic cleaner. The acoustic cleaner will sound off at repetitive intervals which raise the filter bag’s shelf life immensely. Exchanging the defective physical shaker is a smart means to create your baghouse filter last much longer.
2. reverse air baghouse. Reverse air baghouse filters are bigger than shaker collectors. They possess a round shape with tubular filter bag house. Often the round filter bag house in the reverse air baghouse is known as socks. The reverse air baghouse filters are detained on wire cages and hang down within the filter with infected gas stream getting drawn by the outside of every filter bag. The clean air being exhauste from within each filter bag by an outside fan. Sadly, occasionally the powder gathers on the exterior of the baghouse dust collector which can direct to the breakdown of the baghouse filter.
3. Pulse Jet Bag Filter Dust Collector. Pulse jet Bag Filter Dust Collector are the most commonly applied Dust Collector. It utilizes high stress and low volume air as a cleaning device. Pulse jet Dust Collector condense air at 5-6 bar pressure restrictions. This makes it among the much broadly employed types of baghouse filter. People love the adaptability of pulse jet bag filter dust collector. Significantly like the other types of dust collectors, the pulse jet dust collector run into operational issues. These kinds of issues can be corrected with the set up of an acoustic cleanser. The use of an acoustic cleaner with your reverse jet baghouse filter can increase the bag life, increase the process of the filter, reduce the level of the reverse jet pulsing, remove cross contamination, and make sure all material leaves the hopper.
Applications:
1. The dust smoke filtration and extraction in Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gasfilter etc.
3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.
5. thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace
Specifications:
Model
GQM
32-3
GQM
32-4
GQM
32-5
GQM
32-6
GQM
64-4
GQM
64-5
GQM
64-6
GQM
64-7
GQM
64-8
Air volume (m3 /h)
6900
8930
11160
13390
17800
22300
26700
31200
35700
Total filter area (m2)
93
124
155
186
248
310
372
434
496
Chamber(pcs)
3
4
5
6
4
5
6
7
8
Quantity of filter bag(pcs)
32
64
Total quantity of filter bag(pcs)
96
128
160
192
256
320
384
448
512
Pulse valve
Quantity(pcs)
3
4
5
6
4
5
6
7
8
Specification(inch)
2
2 1/2
Specification of filter bag(Dmm*Lmm)
130*2450
Filter material
Based on flue gas properties
Filtration speed(m/min)
0.8~2.0(Adjustable)
Negative pressure(Pa)
less than 6000
Resistance(Pa)
1470~1770
Inlet dust concentration
less than 200
less than 1000
Blowing pressure(Mpa)
0.5~0.7
Compressed air consumption(Nm3/min)
0.27
0.37
0.46
0.55
1.2
1.5
1.8
2.1
2.4
Air-locking unit
Adjustable
Screw conveyor
No
Adjustable
Area of heat preservation(m2)
28.3
35.8
45.1
56.8
71
96.2
120.2
142.6
176
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
5, can be achieved without stopping the machine for filter bags,maintenance does not affect normal operation.
6, by way of the upper pumping bags, bags for improved operation and running.
