Cement Plant Bag Filter Dust Collector High Temperature Gas Filter

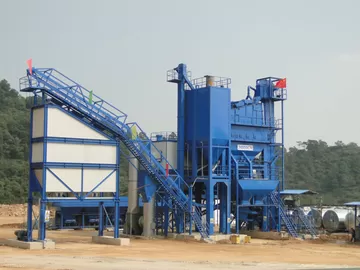

ECOGRACE Bag Filter Dust Collector is widely applied in Asphalt mixing site, cement plant, gypsum plant, steel plant, coal fired boiler,  etc.

ECOGRACE always providing the cost-effective filtration solutions for all of our clients.

About the series of  Low Pressure Long Bag Pulse Dust Collector

Advantageous characteristics of  :

         1. ECOGRACE BAG FILTER DUST COLLECTOR, it has taken the temperature gas to lower temperature gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.

         2. The longer filters dust collector take smaller area which will increase the processing capacity, therefore it is more convenient for reconstruction of old factories.

         3. ECOGRACE take separate chamber off line dust cleaning in bag filter dust collector design and it is with high efficiency and few secondary flour dust attachment, meanwhile it can effectively save the energy consumption. Such design effectively protect the filter bags and pulse valve and save the operation and  maintenance cost for the dust collector system.

         4. The filter bags will be replaced without stop the filtration system.

         5. ECOGRACE Dust Collector with ECOGRACE made filters which is made with snap band with good sealing, easy for assemble and replacement and good tightness.

         6. ECOGRACE take Air leaking detecting with oil and to keep all the system  air leaking  <0.5%.

         7. Our Bag Filter Dust Collector is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.

Technical parameters:

Model Bag quantty Filtering area Width Air volume m3/h
GD601 72 108M2 1150mm 6500-13000
GD610 108 162M2 1630mm 9700-19500
GD602 144 216M2 2198mm 13000-26000
GD611 180 270M2 2678mm 16500-32500
GD620 216 324M2 3158mm 19500-39000
GD612 252 378M2 3726mm 22700-45400
GD621 288 432M2 4206mm 26000-52000
GD630 324 486M2 4686mm 30000-60000
GD622 360 540M2 5254mm 33000-66000
GD631 396 594M2 5734mm 36000-72000
GD640 432 648M2 6214mm 39000-78000
