Filter Media: | PPS / RYTON Filter Felt | Weight: | 14 Oz , 16 Oz , 17 Oz , 550 Gsm , 500 Gsm |
---|---|---|---|
Chemical Finishing: | PTFE Dipping ,PTFE Membrane | Size: | D 160mm X L 6000mm , D130 X 5000mm |
Origin Of Material: | Japan | Application: | Coal Boiler In Power Plant Dust Filtration |
High Light: | dust collector replacement bags, dust collection filter bags |

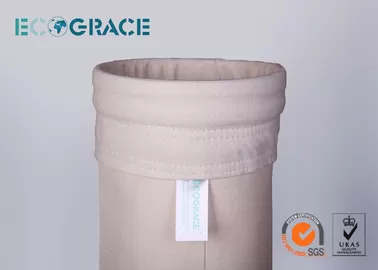

Ryton / PPS 554 Filter Media Dust Collector Filter Power Plant Dust Collector System
PPS filter bag , Ryton Filter Bag is the main filter bag applied in plant plant coal fired boiler , it will working for 4 years working life if the operation work is well .
Meanwhile , it has a good high temperature resistant function , high strength , ECOGRACE special chemcial surface coating treatment will enlarge it’s functional capacity , and emission .
Quick Details of ECOGRACE Dust Filter Bag:
1. ECOGRACE Dust filter bags include : RYTON / PPS Filter bags, NOMEX / ARAMID Filter bags, P84 Filter bags, Homo Acrylic Filter Bags, PTFE filter bags, POLYESTER FILTER BAGS.
2. APPLICATIONS OF ECOGRCE FILTER BAGS:
ECOGRACE Filter bags are widely applied in the environmental protection system ,dust collecting / filtration system in cement industry , steel production industry, asphlat mixing industry, foundary / smelting industry, chemical industry,etc.
3. Good quality and longer working like makes ECOGRACE dust filter bags the best choice and the only choice for
all of our clients.
Applications:
In thermal power plant coal boiler, waste incinerator, thermal power plant of fly ash filtration of pulse clear dust collector , PPS filter bag ,Rtyon filter bag are an ideal filtration material.
Specifications:
Series: |
PPS / Ryton Filter Media |
Material: |
PPS (RYTON) 450 – 650g/sq.m needle felt |
Fibre: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
Scrim: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
Weight: |
400 – 650g/m2 (customized) |
Finishing: |
Heat setting, single side singeing, calendering (double sides finishing would be available upon request) |
Specifications: |
Customized according to drawing / sample |
Packaging: |
Polybag in cartons |
Applications: |
Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc. |
Delivery Time: |
7-45 days |
Payment Terms: |
|
Below fiber performance index for your reference.
|
Operating Temperature (°C, dry) |
Abrasion Resistance |
Hydrolysis Resistance |
Alkali Resistance |
Organic Acid Resistance |
Mineral Acid Resistance |
Oxidation Resistance (15%) |
PPS |
190/ (200) |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Poor |
Competitive Advantage:
Quality PPS Ryton Filter Bag
High temperature resistant
High-end production facilities
Good sewing job
PPS Ryton Filter Bag
Anti chemical function well .
Experienced technical & production
1. Good quality Air filter material made with advanced machinery
2. Accordingly adjusted technical process
3. Strict raw material control and products quality control
4. Heat resistance
5. Good acid and alkali resistance
6. Good hydrolysis stability
7. Easy to dedust
Dust Removing Industrial Filter Bags PPS / NOMEX / PTFE / Fiberglass Filter media
ECOGRACE Filter bag size Specifications :
The diameter of the filter bag is 115-200mm, length is 2000 – 9000mm, the specifications of the commonly used filter bag is 120 – 160 mm diameter, 2000 ~ 6000mm length.
The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We’d like to provide the most suitable design and filtration material select suggestion for your reference.
For different industries application :
For Metal Smelting Industry / Foundaries :
ECOGRACE provide the key solution for the dust / gas filtration in metallurgy industry , just lie the Aluminium smelting , coppy ,leads , steel and iron ,metal smelting dust filtration ,
our own developed filter media will have the funtion high temperature resistant , good corrosion resistant , long working life and cheaper price .
For Asphalt mixing site / Asphalt batching siste :
ECOGRACE have special filter bag solution for the high temperature fumes for the asphalt mixing site , moisture proof , and long working life , with very good price .
For Power station and Incineration Industry
With PTFE Dipping , ECOGRACE filter bags provide near zero emissions for dust collection system for waste incinerator processing and power station boiler. Whether you use standard or low grade coals, wood or tires in boiler, or operate a chemical, hazardous, or medical waste incinerator, all we can deliver consistently high airflow over the life of the filter bags for your application.
For Cement Industry
We know that the cement producer all over the world need high-performance filter media for cement kiln , cement mill, and other pulse jet or reverse baghouse. ECOGRACE filter Bags provide emissions control , production capability increases , energy saving , and the lowest overall maintenance and operating costs.
For Building Material Industry like Gypsum , Lime, mining , glass prduction process dust filtration :
ECOGRACE provide the stable and long lasting working life filter bags for the gypsum prodcution process , lime production process , glass production process .
For Chemical Industry
ECOGRACE filter bag for the chemical industry are offered as thorough solutions. This means you will receive expert support not only filter bag design, but also how to optimize the flow parameters of your system to get the absolute best productivity. This process-specific product design and applications engineering approach has proven to be the lowest risk way to optimize your system’s performance.lter bag
ECOGRACE most popuar filter bag material specifications: dust filter bag
Nomal temperature operation filter bag:
Polypropylene needle felt filter bag
Polyester needle felt filter bag
Water proof polyester filter bag
Anti-static conductive polyester filter bag
Carbon antistatic polyester filler bag
Acrylic needle felt filter bagdus
High temperature filter bag:
ECOGRACE dust filter bag :
Filter cloth—–Polyester, polypropylene, acrylic, aramid (nomex), pps , p84 , fiberglass needle felt with treatment of singeing, calendar, hear set, anti-static, water and oil repellent , ptfe membrane , PTFE coating .
——–Compound Felt : Fiberglass mix pps, fiberglass mix p84 or other compound felt according your request.Woven fiberglass cloth with finish treatments of anti-acid, silicone, graphite and ptfe coating , PTFE dipping , PTFE membrane etc.
——–Polyester/Polypropylene needle felt for liquid filtration. Nylon mesh for liquid filtration.
ECOGRACE Filter bag—–Filter bags for dust collector system
Filter Shaker bags / Shaker Bags
Reverse air filter bags /Filter bags for reverse air blow
Pulse Jet filter bags dust filter bag
Envelope filter bags
Filter bags for special working conditions
Poyester, polypropylene, nylon and PTFE liquid filter bag

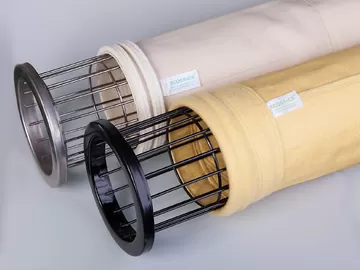

Filter cages-——Filter Bag Cages , stainless steel cage , galvanized filter cage , organic silicon filter cage .
Filter bag sewing thread——- sewing filter bags: PTFE thread , fiberglass thread , nomex thread, polyester thread. dust filter bag
