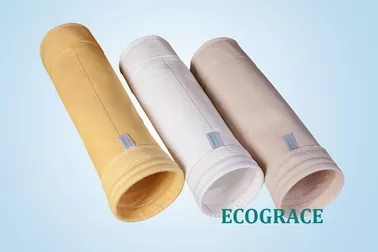

PE Filter Bag Dust Collector Filter PTFE coating Coating Filter Bag
Polyester is the most popular dust collector filter, it is widely applied in cement plant , material crushing process , coal powder grinding process , cement converyor process , etc. It is also applied in mining industry, tobacco industry ,etc.
Detailed Product Description
Fiber:
Polyester Water And Oil Repellent
Weight:
500g/m2
Mechanical Finish:
Heatset And Signed One Side
Air Permeability:
14 M2/min
Typical Load @ Peak:
MD: 1300, XD: 1700 N/mm
Typical Load @ Strain:
MD: 25%, XD: 45%
Maximum Operation Temperature:
130 Degree
Maximum Surge Temperature:
150 Degree
Mullenburst:
750 Psi
Liner Shrinkage @ 230 Degree:
MD: 3%, XD: 3%
Water and Oil Repellent Polyester Filter Bags / Replacement Dust Collector Bags
Introduction of Polyester Water and Oil Repellent Filter Bag
1, Material: Polyester water and oil repellent 2, Thickness: 1.7mm 3, Maximum Operation Temperature: 130 degree 4, Maximum Surge Temperature: 150 degree 5, Fanish: Heatset and signed one side 6, Abrasion resistance: Great
Application:
Polyester is not so popular as PTFE and other materials, because of its poor heat resistance. It can not be used in the high temperature environment. Poor alkalis resistance, it can not stay close to the strong alkalis. However, it has a goood performance of abrasion resistance, and it can be used in the cement plant.
Performance:
1, Poor heat resistance and unstable chemical structure. 2, Excellent resistance to oxidize. 3, Excellent performance of abrasion resistance. 4, Fair resistance to hydrolysis.
Technical Information about Polyester Filter Bag
Type
Polyester Water and Oil Repellent Filter bag
Abrasion resistance
Great
Max Operation Temperature
130 degree
Max Surge Temperature
150 degree
Mullenburst
750 Psi
Finish
Heatset and signed one side
Thickness
1.7mm
Packaging
In woven bags
Applications
In flue gas filtration
Delivery Time
15-30 days
Payment Terms
TT or L/C
Technical Information about Other Filter Bags
Dust collector filter bag
Continuous temperature
Peak Temperature
Description
Resistance to Acids
Resistance to Alkalis
Resistance to Oxidation
PH Value
PP filter bag
90ºC
95ºC
PP
Excellent
excellent
restricted
1~14
Acrylic filter bag
125ºC
140ºC
DT
good
good
good
3~11
Polyester dust filter bag
150ºC
150ºC
PE
restricted
moderate
good
4~12
PPS filter bag
190ºC
200ºC
PPS
Excellent
excellent
moderate
1~14
Polyimide filter bag
240ºC
260ºC
P84
good
moderate
good
3~13
PTFE 100% filterbag
250ºC
280ºC
PTFE
Excellent
excellent
excellent
1~14
Fiberglass Filter bag
260ºC
300ºC
BQ
good
good
good
3~11
Their Application:
1, Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2, Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3, Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4, Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine
material
recovery, liquid and solid separation.
