|Place of Origin:|
|Minimum Order Quantity:|
|Filter Bag Media:||Woven Fiberglass Filter Bag||Type:||Reverse Air Filter Bag / Pulse Jet Filter Bag|
|Working Temperature:||150 -260 Degree C||Size:||Diameter 292mm X Length 11000 Mm|
|Application:||Steel Iron Alloy Factory , Coal Boiler Dust Filtration||Other Application:||Carbon Black , Non-ferros Metal Alloy , Paper Plant ,|
|Applied Industry:||Coal Boiler , Cement Kiln Tail Fumes|
|High Light:||filter media bags, non woven filter bags|

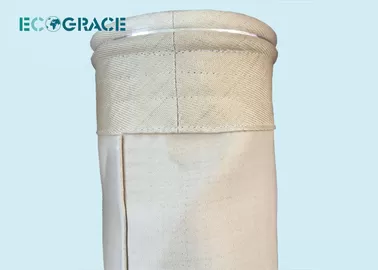

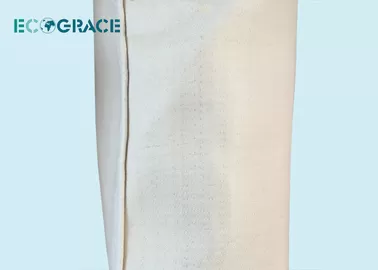

ECOGRACE Fiberglass Filter Bags PTFE / Graphite / Silicon Treatment 1/3 Twill
ECOGRACE Woven Fiberglass Fabric Filter Bag :
ECOGRACE E-glass woven fiberglass filter cloth fabrics are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C.
ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .
ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing ,
1. High temperature resistant , it can work for a long time under 260°C.
2. Smooth surface is good for easy dust cake releasing , energy saving .
3. Steady size,non shrinking under proper temperature.
4. Intensity high, obstruction more than 99% code thickness.
• Cement Plant
• Coal Boiler
• Wast incinerators
• Carbon black production
• Steel Mills
Foundary / metal smelting furnace
Non ferros alloy plant
Paper plant ,
Glass production plant .
E-Glass Fiber Finished filter cloth specification:
|Item No.||LOI (%)||Weave||Weight (g/m2)||Mullen burst (kpa)||Tensile strength (N/2.5cm)||Air permeability(cm3/cm2/s·127pa)||Finished||Running temperature (°C)|
|EFC302||> 5||1/3 twill||340-380||> 4500||> 2000||> 1200||20-36||AR||<260|
ECOGRACE Fiberglass Filter Bag Chemical Finishing :
GSP finished:It consists blend of silicon oils, graphite & PTFE ( ). The three finishes components combine to protect the glass fabric from abrasion , but offer only limited protection from chemical attack. The GSP finish is now widely primarily in cement production and metal foundry applications .
PTFE finished:10 % add-on of PTFE particles encapsulates the glass fibers to prevent abrasion.Recommended for use with utility base load boilers operating under mild pH conditions.
Acid Resistent treatment ( AR ) :Consists of acid resistant polymers,PTFE , graphite , and silicon treatment . Recommended for filtration of flue gases in industrial utility boilers and acid environments such as carbon black and fossil fuel burning power generation .
e-PTFE membranes: Coated with e-PTFE membranes
With the surface finished, it enjoys such characters as smooth, much lower emission , high temperature resistant , chemical corrosion repellent , high tensile breaking strength ,easy cleaning .
