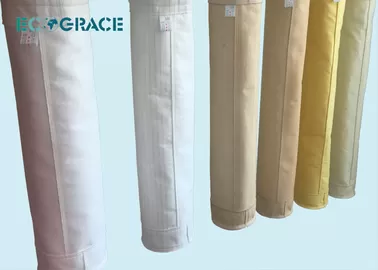

Coal Boiler Bag Filter Fiberglass Filter Bag Anti Corrosion Filter Media Fiberglass
ECOGRACE fiberglass filter bags are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C. ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing ,
Industrial Applications:
• Cement Plant
• Coal Boiler
• Wast incinerators
• Carbon black production
• Refineries
• Steel Mills
Foundary / metal smelting furnace
Metal Smelting
Non ferros alloy plant
Paper plant ,
Glass production plant .
ECOGRACE Fiberglass Filter Bag Cloth Specification :
Item No.
LOI (%)
Weave
Weight (g/m2)
Mullen burst (kpa)
Tensile strength (N/2.5cm)
Air permeability(cm3/cm2/s·127pa)
Finished
Running temperature (°C)
warp
weft
EFA301
> 10
double twill
780-850
> 6200
> 2400
> 2000
15-30
PTFE
<260
EFI301
> 10
double twill
780-850
> 6200
> 2400
> 2000
15-30
PI
<260
EFB302
> 2
1/3 twill
450-500
> 4500
> 2000
> 1200
20-36
GSP
<260
EFC302
> 5
1/3 twill
340-380
> 4500
> 2000
> 1200
20-36
AR
<260
EFA303
>10
1/3 twill
320-360
> 3500
> 1400
> 800
22-35
PTFE
<260
EFC303
> 5
1/3 twill
900-950
> 3400
> 1200
> 700
22-35
AR
<260
EFD502
> 7
satin
900-950
> 8000
> 3000
> 2400
15-25
PD
<400
EFA404
> 10
double twill
800-850
> 5000
> 2600
> 2200
15-30
PTFE
<260
EFE201
>1.7
satin
550-600
> 5500
> 2200
> 2000
20-35
PG
<260
EFE203
> 1.7
1/3 twill
550-600
> 5500
> 2200
> 2000
20-35
PG
<260
ECOGRACE Fiberglass Filter Bag Chemical Finishing :
GSP finished:It consists blend of silicon oils, graphite & PTFE ( ).The finishing is to combine to protect the glass fabric from abrasion , but offer only limited protection from chemical attack. The GSP finish is now widely primarily in cement production and metal foundry applications .
PTFE finished:10 % add-on of PTFE particles encapsulates the glass fibers to prevent abrasion.Recommended for use with utility base load boilers operating under mild pH conditions.
Acid Resistent treatment ( AR ) :Consists of acid resistant polymers,PTFE , graphite , and silicon treatment . Recommended for filtration of flue gases in industrial utility boilers and acid environments such as carbon black and fossil fuel burning power generation .
e-PTFE membranes: Coated with e-PTFE membranes
With the surface finished, it enjoys such characters as smooth, much lower emission , high temperature resistant , chemical corrosion repellent , high tensile breaking strength ,easy cleaning .
