Cement Silo Filter , Silo top filter dust collector , silo top filter fo concrete batching plant ,
Construction: 1) Material: Carbon steel or stainless steel 2) Installed with pulse valves and control system 3) Block building structure, can be constructed to handle the required airflow

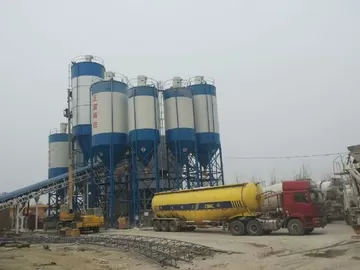

6) Silo Top filter , top silo filter in cement plant , concrete batching plant , coal bunkers.
MODEL
Weight(kg)
Unit
Cartridge No.
Filter area(m2)
L*W*H(mm)
Airflow (m/h)
EFF3-12
1720
1
12
276
1021×2275×4513
8400
EFF3-24
2600
2
24
552
2042×2275×4513
16800
EFF3-36
3640
3
36
826
3063×2275×4513
25200
EFF3-48
4840
4
48
1104
4084×2275×4513
33600
EFF3-60
6100
5
60
1380
5105×2275×4513
42000
EFF3-72
6860
6
72
1656
6126×2275×4513
50400
EFF4-16
2130
1
16
368
1021×2275×4996
11200
EFF4-32
3100
2
32
736
2042×2275×4996
22400
EFF4-48
4270
3
48
1104
3063×2275×4996
33600
EFF4-64
5580
4
64
1472
4084×2275×4996
44800
EFF4-80
7000
5
80
1840
5105×2275×4996
56000
EFF4-96
8360
6
96
2208
6126×2275×4996
67200
Product Descriptions:
Horizontal cartridge dust collectors use gravity and downward airflow to achieve self-clean and reduce pressure across cartridge filters. They collector airborne contaminants from industrial processes varying from welding and metal working to chemical and pharmaceutical processing. They can be used in almost every manufacturing segment to efficiently control pollution levels. They are designed to work efficiently in small particle dusts and ideal for low dust loading applications.
Specifications:
Model
Unit
Cartridge No.
Filter area(m2)
ECF3-12
1
12
276
ECF3-24
2
24
552
ECF3-36
3
36
826
ECF3-48
4
48
1104
ECF3-60
5
60
1380
ECF3-72
6
72
1656
ECF4-16
1
16
368
ECF4-32
2
32
736
ECF4-48
3
48
1104
ECF4-64
4
64
1472
ECF4-80
5
80
1840
ECF4-96
6
96
2208
Features:
(1) Suitable for most industrial process dust collections
(2) Special designed drop down inlet for heavy dust falling into hopper before reaching the filters.
(3) A variety of filter media technologies to provide filter efficiencies to 99.98%
(4) Suitable for operating at highest air-to-cloth ratio and providing longest filter life
(5) Cartridges secured and changed out from front access doors without need of tools
(6) Automatic compressed air pulse cleaning is standard
(7) Centrifugal fan is mounted on top of dust collector to save floor space
(8) Timer board or pulse on demand controls available to activate pulse valves
(9) Strongest housing construction for durable working life.
Typical Application:
Metal working, laser cutting, plasma cutting fumes, grinding, sand blast, welding fumes, graphite, pharmaceutical, chemical
Specifications:
Model
Cartridges
Filter Area 1
Filter Area 2
Filter Area 3
Filter Area 4
D2-4
4
84 m2
112 m2
37.6 m2
52 m2
D2-8
8
168 m2
224 m2
75.2 m2
104 m2
D2-12
12
252 m2
336 m2
112.8 m2
156 m2
D2-16
16
336 m2
448 m2
150.4 m2
208 m2
D2-20
20
420 m2
560 m2
188 m2
260 m2
D3-6
6
126 m2
168 m2
56.4 m2
78 m2
D3-12
12
252 m2
336 m2
112.8 m2
156 m2
D3-18
18
378 m2
504 m2
169.2 m2
234 m2
D3-24
24
504 m2
672 m2
225.6 m2
312 m2
D3-30
30
630 m2
840 m2
282 m2
390 m2
Product Dcescriptions:
The baghouse with pleated bags provide a significant update than traditional pulse jet needle felt baghouses. The baghouses with pleated bags dramatically increase filter area and efficiency than needle felt bags while operate at much lower differential pressure. The filter media are pleated and molded into a one-piece filter element, no need for support of cages. Compared with traditional needle felt bags, the pleated
Product Descriptions:
Horizontal cartridge dust collectors use gravity and downward airflow to achieve self-clean and reduce pressure across cartridge filters. They collector airborne contaminants from industrial processes varying from welding and metal working to chemical and pharmaceutical processing. They can be used in almost every manufacturing segment to efficiently control pollution levels. They are designed to work efficiently in small particle dusts and ideal for low dust loading applications.
Features:(1) Modular structure for easy system set up on site. The major components are already installed before delivery.
Compact structure design to save expensive plant floor space.
(2) Standard container shipping for cheapest freight cost.
(3) Various cartridge filter media available for widest dust collection applications.
(4) Special designed panels between each layer of cartridges prevent dusts from upper cartridges falling to lower cartridges
(5) Longest filter life and highest filter efficiency.
(6) Tool-free cartridge cover makes filter change-out a very easy and clean work.
Specifications:
Model
Unit
Cartridge No.
Filter area(m2)
ECF3-12
1
12
276
ECF3-24
2
24
552
ECF3-36
3
36
826
ECF3-48
4
48
1104
ECF3-60
5
60
1380
ECF3-72
6
72
1656
ECF4-16
1
16
368
ECF4-32
2
32
736
ECF4-48
3
48
1104
ECF4-64
4
64
1472
ECF4-80
5
80
1840
ECF4-96
6
96
2208
Product Descriptions:
Vertical cartridge collectors are designed for low airflow and heavy dust load applications. The filter cartridges are fastened on tube sheet by a special locking mechanism. The venturi on the top of tube sheet can improve pulse jet clean effects and reduce system pressure. The vertical mounted cartridges avoid possibility of dusts falling from upper filters to down filters, which allows for higher A/C ratio and longer filter life.
Features:
(1) Suitable for most industrial process dust collections
(2) Special designed drop down inlet for heavy dust falling into hopper before reaching the filters.
(3) A variety of filter media technologies to provide filter efficiencies to 99.98%
(4) Suitable for operating at highest air-to-cloth ratio and providing longest filter life
(5) Cartridges secured and changed out from front access doors without need of tools
(6) Automatic compressed air pulse cleaning is standard
(7) Centrifugal fan is mounted on top of dust collector to save floor space
(8) Timer board or pulse on demand controls available to activate pulse valves
(9) Strongest housing construction for durable working life.
Typical Application:
Metal working, laser cutting, plasma cutting fumes, grinding, sand blast, welding fumes, graphite, pharmaceutical, chemical
Specifications:
Model
Cartridges
Filter Area 1
Filter Area 2
Filter Area 3
Filter Area 4
D2-4
4
84 m2
112 m2
37.6 m2
52 m2
D2-8
8
168 m2
224 m2
75.2 m2
104 m2
D2-12
12
252 m2
336 m2
112.8 m2
156 m2
D2-16
16
336 m2
448 m2
150.4 m2
208 m2
D2-20
20
420 m2
560 m2
188 m2
260 m2
D3-6
6
126 m2
168 m2
56.4 m2
78 m2
D3-12
12
252 m2
336 m2
112.8 m2
156 m2
D3-18
18
378 m2
504 m2
169.2 m2
234 m2
D3-24
24
504 m2
672 m2
225.6 m2
312 m2
D3-30
30
630 m2
840 m2
282 m2
390 m2
Product Dcescriptions:
The baghouse with pleated bags provide a significant update than traditional pulse jet needle felt baghouses. The baghouses with pleated bags dramatically increase filter area and efficiency than needle felt bags while operate at much lower differential pressure. The filter media are pleated and molded into a one-piece filter element, no need for support of cages. Compared with traditional needle felt bags, the pleated bags increase filter area by 100~300%, which allow for much smaller dust collector size.
Features:
(1) 100% spun bond polyester filter media. Durable and rigid construction
(2) Quickest erection of system. Most components Pre-installed in factory to minimize installation on site. No welding work is required on site.
(3) Wide pleat spacing, narrow pleat depth for best pulse jet clean
(4) Highest filter efficiency over 99.99%
(5) Very simple and easy bag installation and maintenance
(6) Pleated bags can be retrofitted on exiting felt bag collectors
