Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating

China Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating supplier
Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating supplier Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating supplier Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating supplier Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating supplier

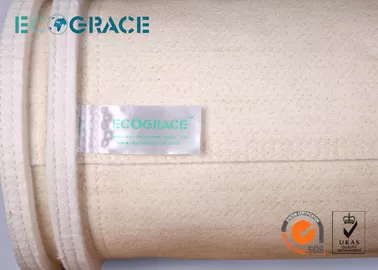

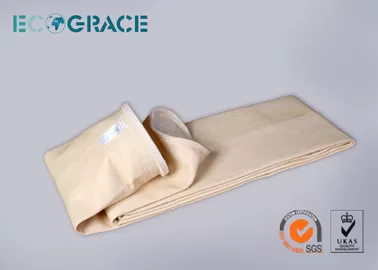

Large Image :  Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS , ISO 9001 / 2008
Model Number: 160x 3050mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 1-3 weeks
Payment Terms: T/T ,L/C, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Filter Media: Nomex Filter Cloth Weight: 550 Gsm
Application: Asphalt Mixing Plant Bag Filter Size: 160 X 3000mm
Operation Temperature: < 204 Degree C Finishing: PTFE Coating

Asphalt mixing plant Bag Filter Nomex Filter Bag Filter Sleeves 4 meter Length


ECOGRACE Nomex filter bag is for  higher temperature dust filtration ,widely applied in Asphalt mixing plant ,Kiln smoke in cement plant ,steel melting furnace smoke and so on .
NOMEX filters offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long wear life.

 Introduction :
Nomex filter bags are made of 100% Meta-aramid / nomex fiber ,it is the best choice for asphalt plant dust collector , which are of metamax filter bags, aramid filter bags or baghouse filter bags.


Applications :
Being Metamax filter bags, nomex filter bags are widely used in asphalt industry, cement industry, chemical industry,Iron and steel industry, themal power industry , Aluminum industry , etc.



 Features  :
Nomex filter bags features  excellent  anti-anrasion, good anti-acid and good  anti-alkali , and anti-high temperature


ECOGRACE Filter bag-----Filter bags for dust collector system

Filter Shaker bags / Shaker Bags

Reverse air filter bags /Filter bags for reverse air blow

Pulse Jet filter bags dust filter bag

Envelope filter bags

Filter bags for special working conditions

Poyester, polypropylene, nylon and PTFE liquid filter bag



ECOGRACE Other filter related products :



Filter cages-------Filter Bag Cages , stainless steel cage , galvanized filter cage , organic silicon filter cage .

Filter bag sewing thread------- sewing filter bags: PTFE thread , fiberglass thread , nomex thread, polyester thread.




 Advantages :
1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204℃ , works well .
3. As nomex filter bags, it is largely used in asphalt plants.
4. With good air permeability and also can be adjusted by customers' specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .


 Specifications
1. Material :with100% Meta-nomex fiber
2. Scrim:  with meta-aramid /nomex staple yarn
3. Finish treatment with singeing, calendering and heat setting.
4. Air permeability (l/m2/s):   150~300
5. Temperature (℃): Continue: 204, Instant: 240



Article Name

Nomex Filtration Felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

550

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking
strength(N/5cm)

Warp

≥900

Weft

≥1200

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink
of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring, PTFE treatment


We are manufacuturer of dust filter bags ,Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications ,

Dust collection Filter Bags Nomex Filter Bag Nomex Needle Felt Baghouse Filter Bag

It widely applied in steel plant ,power plant ,stone crushingarea ,asphalt mixing system,Dust collection Filter Bags Nomex Filter Bag Nomex Needle Felt Baghouse Filter Bag



Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating



Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating



Asphalt mixing plant Nomex Filter Bag Filter Sleeves 4 meter Length PTFE coating
