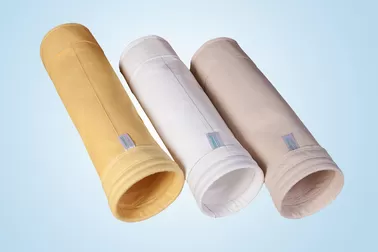

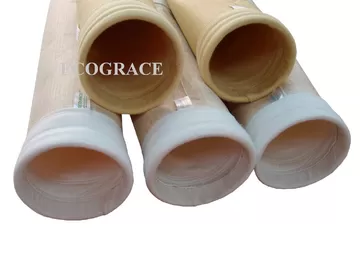

High Efficiency P84 PPS Dust Filter Bags For Cement Kiln Smoke And Gas Filtration

China High Efficiency P84 PPS Dust Filter Bags For Cement Kiln Smoke And Gas Filtration supplier
High Efficiency P84 PPS Dust Filter Bags For Cement Kiln Smoke And Gas Filtration supplier High Efficiency P84 PPS Dust Filter Bags For Cement Kiln Smoke And Gas Filtration supplier

Large Image :  High Efficiency P84 PPS Dust Filter Bags For Cement Kiln Smoke And Gas Filtration

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: D160X6000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 25 days
Payment Terms: T/T ,L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description

High Efficiency P84 PPS Dust Filter Bags For Cement Kiln Smoke And Gas Filtration




Thermal power plant gas filter bags  PPS dust filter bag high temprature resistant filter bag,coal fired boiler dust collector applied PPS filter bags





Specifications

  1. strictly sewing control
  2. Dust Collection Filter Bag
  3. PPS filter bag/PPS Filtration Bag/Dust Filter Bag/PPS filter bag
  4. Features Specifications: PPS Filter Bag.
  5. Dust collector filter bag PPS,China


Modification PPS Filter Bag Features:

1) Material:

Bag body ----- Modification PPS filter cloth

Bag cuff ----- steel-plate,rubber rings and garter spring is available

2) Working temperature:

Normal Working Temperature ----- 170-celsius-degree

Peak Working Temperature ----- 230-celsius-degree

3) Weight standard580g/m2
4) Filtration efficiencyup to 99.99%

5) Filtering precision: 120~200L/M2*S.

6) Dimension&Length: As customers' requirement.

7)Quality level:

Fine strength&ideal air permeability&big durability.



Function of several dust filter bags



 Dust collector filter bag

Continuous temperature

Peak Temperature

Description

Resistance to Acids

Resistance to Alkalis

Resistance to Oxidation

PH Value

PP filter bag

90℃

95℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

125℃

140℃

DT

good

good

good

3~11

Polyester dust filter bag

150℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

200℃

PPS

Excellent

excellent

moderate

1~14

Polyimide filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100% filterbag

250℃

280℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass Filter bag

260℃

300℃

BQ

good

good

good

3~11





Filter bags, dust collector bags, dust bags, filter socks, bags, tubes, socks - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags,dust filter bag ,bag filters,dust collector bags.

Dust bags come in 5 basic designs:

Pulse jet bags (bottom loader or bottom removal)
Pulse jet bags(top loader or top removal)
Shaker design
Reverse air design
Envelope bags

Pulse jet bags PPS filter bag  Ryton filter bag are cleaned using compressed air to mechanically "pulse" or snap the bag periodically so that the built up filter cake is discharged and the flow through the media is returned to its higher air permeability.Ryton filter bag ,PPS filter bag are all belong to Pulse jet bags.They are  are installed on wire cage supports and filter from the outside/ in. In the bottom load design, bags are pre-installed on their cages and then attached to a mounting thimble or cup which hangs down from the underside of the tube sheet. The tube sheet is a metal plate with regularly spaced holes which serves as the top of the gas tight metal box known as a dust collector. The top edge of the bottom loading bag is normally tucked into the cage and the entire assembly is attached to the thimble or cup with a hose clamp.

Installation of bottom loading bags Coal fired boiler filter bag PPS  is more difficult because of being on the dirty side of the collector and having no catwalks or surfaces on which to stand. Some bottom loaders are on the top of large storage bins on tall silos which make installation potentially dangerous. Bottom loader collectors are frequently used when headroom above the collector is not adequate for top removal design bags.

Bottom loading bags are less expensive than comparable size top loaders because the top is plain with no special attachment features.

We are PPS filter bag ,Ryton filter bag manufacturer .



Nomex filter bag for Asphalt mixing plant smoke filtration

P84 dust filtr bag for Cement kiln smoke and gas filtration

PTFE 100% dust filter bags for waste incinerator gas filtration.
