Flue Gas Dust Collector Replacement Bags For Furnace In Smelting Plant

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Flue Gas Dust Collector Replacement Bags For Furnace In Smelting Plant

China Flue Gas Dust Collector Replacement Bags For Furnace In Smelting Plant supplier
Flue Gas Dust Collector Replacement Bags For Furnace In Smelting Plant supplier Flue Gas Dust Collector Replacement Bags For Furnace In Smelting Plant supplier

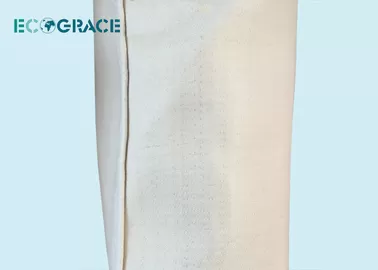

Large Image :  Flue Gas Dust Collector Replacement Bags For Furnace In Smelting Plant

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001
Model Number: 160X3600

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bag, 50 pieces per bag
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 75000 pieces per month
Contact Now
Detailed Product Description
Application: For Smelling Plant High Temperature Resistance: 260 Degree
Abrasion Resistance: Excellent Acid And Alkali Resistance: Excellent
Working Life: 36 Months Finish: PTFE Membrane
Thickness: 1.20 Mm

Detailed Product Description
Fiber: Fiberglass Weight: 700g/m2
Thickness: 1.2mm Typical Load@ Peak: MD: 200, XD: 150
Liner Shrinkage @ 230 Degree: MD: 2%, XD: 2% Maximum Operation Tempertion: 260 Degree
Maximum Surge Temperature: 280 Degree Abrasion Resistance: Excellent



Flue Gas Filter Bags / Dust Collector Bags for Furnace in Smelting Plant



Brief Introduction of Fiberglass Filter Bags:

Fiberglass filter bag is widely used in the filtration of dust in the furnace and other flue gas. Fiberglass filter bag has an excellent performance of heat resistance and it is stable. Fiberglass won't change its size even the environment has changed. And it is preservative, so it will have a long service and warmly welcomed by the customers.



Characteristic of Fiberglass Filter Bag:



1, Fiber: Fiberglass

2, Thickness: 1.2mm

3, Preservative: Yes.

4, Max Operation Temperature: 260 degree

5, Max Surge Temperature: 280 degree

6, Specification: Stable.

7, Application: Furnace Flue Gas filtration



Performance:



1, Excellent high temperature gas resistance.

2, Preservative ability.

3, Long service life.

4, High Strength, size won't change with time.

5, Stable chemical properties.





Technical Information of Fiberglass Filter Bag



Article Name

Fiberglass filter bag

Ingredients

Fiber

Fiberglass

Scrim

Fiberglass

Weight

g/m2

700

Thickness

mm

1.2

Density

g/m³

0.4

Permeability

L/dm2.min

180

Tensile breaking

strength(N/5cm)

Warp

≥900

Weft

≥1400

Elongation @210N/5cm

Warp

<8

Weft

<10

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤2

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member







Technical information about Other Materials



Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.8

130 /150

singed on one side

Polyester,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.6

140 /150

singed on one side
oil  and  water

repellent  finish
clean-ability

supporting  finish

Polyester+anti-static

550g/m2

PE/PE

1.8

135 /150

singed on one side ,

anti-static

PPS high-temperature resistant

550g/m2

PPS/PPS

1.5

180 /200

singed on one side

PTFE high-temperature
resistant corrosion prevention

700g/m2

PTFE/PTFE

1.1

250 /280

singed on one side ,

 corrosion prevention

Polyester+PTFE membrane

550g/m2

PE/PE

1.7

135 /150

singed on one side,

PTFE membrane

P84 high-temperature resistant

550g/m2

P84/P84

2.8

230 /260

singed on one side

 corrosion prevention

FMS high-temperature resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side





Technical Information about Other fIlter Bags



 Dust collector

 filter bag

Continuous

temperature

Peak

Temperature

Description

Resistance

to Acids

Resistance

to Alkalis

Resistance

to Oxidation

PH Value

PP filter bag

90℃

100℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

120℃

140℃

DT

good

good

good

3~11

Polyester dust

 filter bag

120℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

210℃

PPS

Excellent

excellent

moderate

1~14

Polyimid filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100%

 filter bag

240℃

260℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass

Filter bag

260℃

280℃

BQ

good

good

good

3~11







Brief Introduction of Our Manufactory



We are a manufactory set up on 2008 and we have a team of technical engineers, who have more than ten years experience in the filter bags and dust collector. Our products enjoy a good reputation in and out of our country for highly qualified and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide "DIY" service, which means we will design a dust collector according to customer's working condition. What's more, we still have oversea service available.





Our Service:



1, Professional service and reply before the order.

2, Attractive price. We would offer disount if the order can reach to 2000.

3, Oversea service. We can assist in installation and maintencenif necessary.
