Reverse Jet Fiberglass Filter Bags Filter Cloth Non Ferrous Metal Smelting Furnace

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Reverse Jet Fiberglass Filter Bags Filter Cloth Non Ferrous Metal Smelting Furnace

China Reverse Jet  Fiberglass Filter Bags  Filter Cloth Non Ferrous Metal Smelting Furnace supplier
Reverse Jet  Fiberglass Filter Bags  Filter Cloth Non Ferrous Metal Smelting Furnace supplier Reverse Jet  Fiberglass Filter Bags  Filter Cloth Non Ferrous Metal Smelting Furnace supplier

Large Image :  Reverse Jet Fiberglass Filter Bags Filter Cloth Non Ferrous Metal Smelting Furnace

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001, SGS
Model Number: 130X3000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bag, 50 pieces per bag
Delivery Time: 20-35 work days
Supply Ability: 80000 pieces per month
Contact Now
Detailed Product Description
Application: Furnace Smoke Filter Abrasion Resistance: Good
Working Temperature: Up To 260 Degree Acid And Alkali Resistance: Excellent
Working Life: 36 Months Thickness: 1.20 Mm
Finish: PTFE Membrane

Reverse Jet Fiberglass Filter Bags Filter Cloth Non Ferrous Metal Smelting Furnace

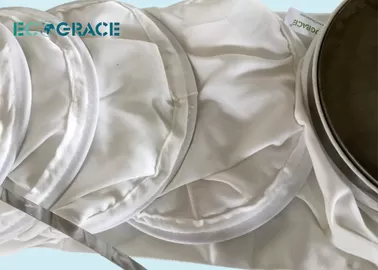

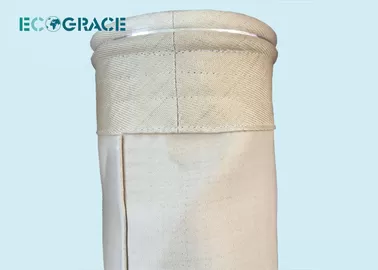

Brief Introduction of Fiberglass Filter Bags:



Fiberglass usually server for non ferrous metal metallurgy smelting furnace dust collection system , cement plant kiln fumes filtration .Fiberglass filter bag has a long service for the following three reasons, one is its excellent heat resistance. Its maximum temperature is 260 degree and maximum surge temperature is 280 degree. Second is its good performance of abrasion resistancce. And the third but not the end is its stable chemical properties, which allow it stay non-reactive in the bad environment of strong acids and alkalis. And fiberglass filter bag is a material that will not change with the temperature.



Detailed Product Description

Fiber:

Fiberglass

Weight:

800g/m2

Thickness:

1.2mm

Typical Load@ Peak:

MD: 200, XD: 150

Liner Shrinkage @ 230 Degree:

MD: 2%, XD: 2%

Maximum Operation Tempertion:

260 Degree

Maximum Surge Temperature:

280 Degree

Abrasion Resistance:

Excellent





Preservative High Strength Polyester Filter Bags with PTFE Membrane



Characteristic of Fiberglass Filter Bag:



1, Fiber: Fiberglass

2, Thickness: 1.2mm

3, Mechanical Finish: ePTFE member

4, Max Operation Temperature: 260 degree

5, Max Surge Temperature: 280 degree

6, Specification: Stable.

7, High strength.

8, Application: Furnace Flue gas filtration





Performance:



1, Excellent high temperature gas resistance.

2, Strong alkalis resistance.

3, Preservative

4, Long service life.

5, High Strength, its size change little with time.





Technical Information of Fiberglass filter bag



Article Name

Fiberglass filter bag

Ingredients

Fiber

Fiberglass

Scrim

Fiberglass

Weight

g/m2

650

Thickness

mm

1.2

Density

g/m³

0.3

Permeability

L/dm2.min

180

Tensile breaking

strength(N/5cm)

Warp

≥900

Weft

≥1400

Elongation @210N/5cm

Warp

<8

Weft

<10

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤2

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member







Technical information about other materials



Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.8

130 /150

singed on one side

Polyester,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.6

140 /150

singed on one side
oil  and  water  repellent

 finish
clean-ability  supporting

  finish

Polyester+anti-static

550g/m2

PE/PE

1.8

135 /150

singed on one side ,

anti-static

PPS high-temperature

 resistant

550g/m2

PPS/PPS

1.5

180 /200

singed on one side

PTFE high-temperature
resistant corrosion

 prevention

700g/m2

PTFE/PTFE

1.1

250 /280

singed on one side ,

 corrosion prevention

Polyester+PTFE

membrane

550g/m2

PE/PE

1.7

135 /150

singed on one side,

PTFE membrane

P84 high-temperature

 resistant

550g/m2

P84/P84

2.8

230 /260

singed on one side

 corrosion prevention

FMS high-temperature

 resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side





Technical Information about Other fIlter Bags



 Dust collector filter bag

Continuous

temperature

Peak

Temperature

Description

Resistance

 to Acids

Resistance

to Alkalis

Resistance to

 Oxidation

PH

Value

PP filter bag

90℃

95℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

120℃

140℃

DT

good

good

good

3~11

Polyester dust

 filter bag

130℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

210℃

PPS

Excellent

excellent

moderate

1~14

Polyimid filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100%

 filter bag

240℃

260℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass

 Filter bag

260℃

280℃

BQ

good

good

good

3~11







Brief Introduction of Our Manufactory



We have a team of technical engineers, who have more than ten years experience in the filter bags and dust collector. Our products enjoy a good reputation in and out of our country for highly qualified and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide "DIY" service, which means we will design a dust cReverse Jet  Fiberglass Filter Bags  Filter Cloth Non Ferrous Metal Smelting Furnaceollector according to customer's working condition. What's more, we still have oversea service available.
