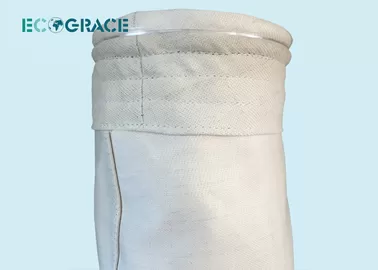

High Temperature Fiberglass Filter Bags For Furnace Smoke Filter

China High Temperature Fiberglass Filter Bags For Furnace Smoke Filter supplier

Large Image :  High Temperature Fiberglass Filter Bags For Furnace Smoke Filter

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001, SGS
Model Number: D130X3600

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bag, 50 pieces per bag
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T
Supply Ability: 70000 pieces per month
Contact Now
Detailed Product Description
Application: For Furnace Smoke Filter Alkali Resistance: Excellent
Operating Temperature: Up To 260 Degree Working Life: 3 Years
Finish: EPTFE Thickness: 1.20 Mm

High Temperature Fiberglass Filter Bags / Dust Collector Filter Bag





Detailed Product Description

Fiber:

Fiberglass

Weight:

600g/m2

Thickness:

1.2mm

Typical Load@ Peak:

MD: 210, XD: 140

Liner Shrinkage @ 230 Degree:

MD: 2%, XD: 2%

Maximum Operation Tempertion:

260 Degree

Maximum Surge Temperature:

280 Degree

Abrasion Resistance:

Excellent





Brief Introduction of Fiberglass Filter Bags:



Fiberglass filter bag has a long service for the following three reasons, one is its excellent heat resistance. Its maximum temperature is 260 degree and maximum surge temperature is 280 degree. Second is its good performance of abrasion resistancce. And the third but not the end is its stable chemical properties, which allow it stay non-reactive in the bad environment of strong acids and alkalis.



Characteristic of Fiberglass Filter Bag:



1, Fiber: Fiberglass

2, Thickness: 1.2mm

3, Mechanical Finish: ePTFE member

4, Max Operation Temperature: 260 degree

5, Max Surge Temperature: 280 degree

6, Heat resistance: Excellent

7, Abrasion Resistance: Excellent

8, Application: Furnace Flue gas filtration





Performance:



1, Excellent high temperature gas resistance.

2, Strong alkalis resistance.

3, Poor hydrolysis resistance.

4, Long service life.

5, High dust collection filtration efficiency.





Technical Information of Fiberglass filter bag



Article Name

Fiberglass filter bag

Ingredients

Fiber

Fiberglass

Scrim

Fiberglass

Weight

g/m2

750

Thickness

mm

1.2

Density

g/m³

0.28

Permeability

L/dm2.min

170

Tensile breaking

strength(N/5cm)

Warp

≥900

Weft

≥1400

Elongation @210N/5cm

Warp

<8

Weft

<10

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤2

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member







Technical information about other materials



Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.9

135 /150

singed on one side

Polyester,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.7

135 /150

singed on one side
oil  and  water  repellent

  finish
clean-ability  supporting

  finish

Polyester+anti-static

550g/m2

PE/PE

1.7

135 /150

singed on one side ,

anti-static

PPS

high-temperature

 resistant

550g/m2

PPS/PPS

1.7

190 /200

singed on one side

PTFE high-temperature
resistant corrosion

 prevention

700g/m2

PTFE/PTFE

1.2

250 /280

singed on one side ,

corrosion prevention

Polyester+PTFE

 membrane

550g/m2

PE/PE

1.7

135 /150

singed on one side,

PTFE membrane

P84 high-temperature

 resistant

550g/m2

P84/P84

2.8

240 /260

singed on one side

corrosion prevention

FMS high-temperature

 resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side





Technical Information about Other fIlter Bags



 Dust collector

 filter bag

Continuous

 temperature

Peak

Temperature

Description

Resistance

 to Acids

Resistance

 to Alkalis

Resistance to

 Oxidation

PH Value

PP filter bag

90℃

95℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

120℃

140℃

DT

good

good

good

3~11

Polyester dust

 filter bag

130℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

210℃

PPS

Excellent

excellent

moderate

1~14

Polyimid filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100%

filter bag

240℃

260℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass

Filter bag

260℃

280℃

BQ

good

good

good

3~11







Brief Introduction of Our Manufactory



We are a manufactory, which was set up on 2008. We have a team of technical engineers, who have more than ten years experience in the filter bags and dust collector. Our products enjoy a good reputation in and out of our country for highly qualified and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide "DIY" service, which means we will design a dust collector according to customer's working condition. What's more, we still have oversea service available.





Pictures of Production Site



Abrasion Resistance High Temperature Filter Bags with Long Service LifeAbrasion Resistance High Temperature Filter Bags with Long Service Life
