Home ProductsFiberglass Filter Bags

Fiberglass Filter Cloth PTFE Filter Bags Alkali Free High Temperature Gas Resistance

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Fiberglass Filter Cloth PTFE Filter Bags Alkali Free High Temperature Gas Resistance

China Fiberglass Filter Cloth PTFE Filter Bags Alkali Free High Temperature Gas Resistance supplier
Fiberglass Filter Cloth PTFE Filter Bags Alkali Free High Temperature Gas Resistance supplier Fiberglass Filter Cloth PTFE Filter Bags Alkali Free High Temperature Gas Resistance supplier

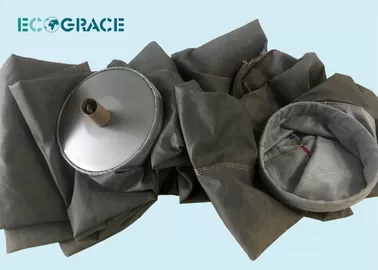

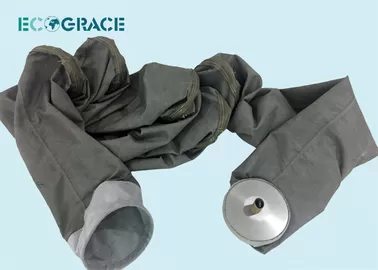

Large Image :  Fiberglass Filter Cloth PTFE Filter Bags Alkali Free High Temperature Gas Resistance

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001, SGS
Model Number: D150X3600

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bag, 50 pieces per bag
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T
Supply Ability: 60000 pieces per month
Contact Now
Detailed Product Description
Application: For Furnace Flue Gas Filtration Acid And Alkali Resistance: Excellent
Abrasion Resistance: Excellent Working Temperature: Up To 260 Degree C
Heat Resistance: Excellent Thickness: 1.0 Mm

Fiberglass Filter Bags Alkali Free Fiberglass Filter Cloth PTFE Membrane Filter Bag



ECOGRACE Fiberglass Filter Bags:

Thanks to its excellent heat resistance, fiberglass filter bag is one of the best filter bag, which we can use in the filtration of frunace flue gas. And fiberglass filter bag has a good performance of abrasion resistance, which makes it has a long service.

The applied industry including cement plant , carbon black processing , Silicon furnace , Ferrous Silicon Manganese smelting furnace , Coal Boilers , steel mill .



Detailed Product Description

Fiber:

Fiberglass

Weight:

785g/m2

Thickness:

1.0mm

Typical Load@ Peak:

MD: 210, XD: 130

Liner Shrinkage @ 230 Degree:

MD: 1.5%, XD: 2%

Maximum Operation Tempertion:

260 Degree

Maximum Surge Temperature:

280 Degree

Abrasion Resistance:

Excellent



Introduction of Fiberglass Filter Bags:

Thanks to its excellent heat resistance, fiberglass filter bag is one of the best filter bag, which we can use in the filtration of frunace flue gas. And fiberglass filter bag has a good performance of abrasion resistance, which makes it has a long service.



Characteristics of Fiberglass Filter Bag:

1, Fiber: Fiberglass

2, Thickness: 1.0mm

2, Mechanical Finish: ePTFE member

3, Max Operation Temperature: 260 degree

4, Max Surge Temperature: 280 degree

5, Heat resistance: Excellent

6, Abrasion Resistance: Excellent

6, Application: Furnace Flue gas filtration



Performance:

1, Excellent high temperature gas resistance.

2, Well strong alkalis reistance.

3, Poor hydrolysis resistance.

4, Long service life.

5, High dust collection filtration efficiency.



Technical Information of Fiberglass filter bag

Article Name

Fiberglass filter bag

Ingredients

Fiber

Fiberglass

Scrim

fFberglass

Weight

g/m2

785

Thickness

mm

1.0

Density

g/m³

0.28

Permeability

L/dm2.min

180

Tensile breaking

strength(N/5cm)

Warp

≥2200

Weft

≥3000

Elongation @210N/5cm

Warp

<8

Weft

<10

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤2

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE membrane







Technical information about other materials

Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.9

135 /150

singed on one side

Polyester,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.7

135 /150

singed on one side
oil  and  water  repellent

  finish
clean-ability  supporting

  finish

Polyester+anti-static

550g/m2

PE/PE

1.7

135 /150

singed on one side ,

anti-static

PPS high-temperature

resistant

550g/m2

PPS/PPS

1.7

190 /200

singed on one side

PTFE high-temperature
resistant corrosion

prevention

700g/m2

PTFE/PTFE

1.2

250 /280

singed on one side ,

 corrosion prevention

Polyester+PTFE

membrane

550g/m2

PE/PE

1.7

135 /150

singed on one side,

PTFE membrane

P84 high-temperature

 resistant

550g/m2

P84/P84

2.8

240 /260

singed on one side

corrosion prevention

FMS high-temperature

 resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side





Technical Information about Other fIlter Bags

 Dust collector

 filter bag

Continuous

temperature

Peak Temperature

Description

Resistance

 to Acids

Resistance

to Alkalis

Resistance to

Oxidation

PH Value

PP filter bag

90℃

95℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

125℃

140℃

DT

good

good

good

3~11

Polyester dust

filter bag

150℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

200℃

PPS

Excellent

excellent

moderate

1~14

Polyimid filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100%

filter bag

250℃

280℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass

Filter bag

260℃

300℃

BQ

good

good

good

3~11







Brief Introduction of Our Manufactory



We are a manufactory, which was set up on 2008. We have a team of technical engineers, who have more than ten years experience in the filter bags and dust collector. Our products enjoy a good reputation in and out of our country for highly qualified and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide "DIY" service, which means we will design a dust collector according to customer's working condition. What's more, we still have oversea service available.
