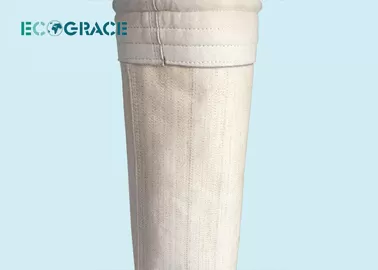

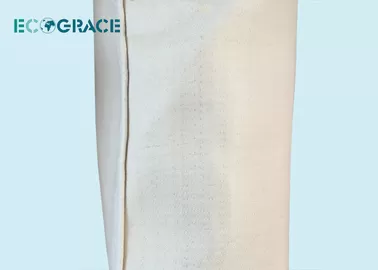

Pulse Jet / Reverse Air Filter Fiberglass Filter Bag PTFE membrane

China Pulse Jet / Reverse Air Filter Fiberglass Filter Bag PTFE membrane supplier

Large Image :  Pulse Jet / Reverse Air Filter Fiberglass Filter Bag PTFE membrane

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001 : 2008 , SGS
Model Number: D160mm X L6000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 50000 pieces per month
Detailed Product Description
Filter Bag Media: Woven Fiberglass Filter Bag Type: Pulse Jet Filter Bag , Reverse Air Filter Bag
Working Temperature: 150 -260 Degree C Size: 160 X 6000mm , 152 X 5000 Mm, 292 X 11000mm
Application: Ash Handling For Iron Alloy Furnace , Silicon Furnace Other Application: Carbon Black , Non-ferros Metal Alloy , Paper Plant ,

Pulse Jet / Reverse Air Filter Fiberglass Filter Bag PTFE membrane



ECOGRACE Woven Fiberglass Fabric Filter Bag :



E-glass woven fiberglass filter cloth fabrics are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C. ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing ,



Features:

1. High temperature resistant , it can work for a long time under 260°C.

2. Smooth surface is good for easy dust cake releasing , energy saving .

3. Steady size,non shrinking under proper temperature.

4. Intensity high, obstruction more than 99% code thickness.



Industrials Applications:

• Cement Plant

• Coal Boiler

• Wast incinerators

• Carbon black production

• Refineries

• Steel Mills

Foundary / metal smelting furnace

Metal Smelting

Non ferros alloy plant

Paper plant ,

Glass production plant .



E-Glass Fiber Finished filter cloth specification:

Item No. LOI (%) Weave Weight (g/m2) Mullen burst (kpa) Tensile strength (N/2.5cm) Air permeability(cm3/cm2/s·127pa) Finished Running temperature (°C)
warp weft
EFA301 > 10 double twill 780-850 > 6200 > 2400 > 2000 15-30 PTFE <260
EFI301 > 10 double twill 780-850 > 6200 > 2400 > 2000 15-30 PI <260
EFB302 > 2 1/3 twill 450-500 > 4500 > 2000 > 1200 20-36 GSP <260
EFC302 > 5 1/3 twill 340-380 > 4500 > 2000 > 1200 20-36 AR <260
EFA303 >10 1/3 twill 320-360 > 3500 > 1400 > 800 22-35 PTFE <260
EFC303 > 5 1/3 twill 900-950 > 3400 > 1200 > 700 22-35 AR <260
EFD502 > 7 satin 900-950 > 8000 > 3000 > 2400 15-25 PD <400
EFA404 > 10 double twill 800-850 > 5000 > 2600 > 2200 15-30 PTFE <260
EFE201 >1.7 satin 550-600 > 5500 > 2200 > 2000 20-35 PG <260
EFE203 > 1.7 1/3 twill 550-600 > 5500 > 2200 > 2000 20-35 PG <260



ECOGRACE Fiberglass Filter Bag Chemical Finishing :



GSP finished:It consists blend of silicon oils, graphite & PTFE ( Teflon ). The three finishes components combine to protect the glass fabric from abrasion , but offer only limited protection from chemical attack. The GSP finish is now widely primarily in cement production and metal foundry applications .

PTFE finished:10 % add-on of PTFE particles encapsulates the glass fibers to prevent abrasion.Recommended for use with utility base load boilers operating under mild pH conditions.

Acid Resistent treatment ( AR ) :Consists of acid resistant polymers,PTFE , graphite , and silicon treatment . Recommended for filtration of flue gases in industrial utility boilers and acid environments such as carbon black and fossil fuel burning power generation .

e-PTFE membranes: Coated with e-PTFE membranes

With the surface finished, it enjoys such characters as smooth, much lower emission , high temperature resistant , chemical corrosion repellent , high tensile breaking strength ,easy cleaning .
