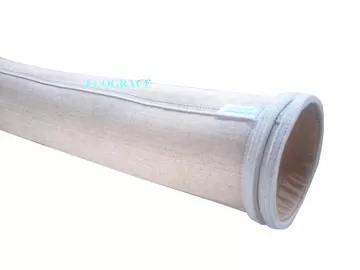

Aramid Nomex Dust Collector Filter Bags Envelope Shape Tube Shape Bag Filter

China Aramid Nomex Dust Collector Filter Bags Envelope Shape  Tube Shape Bag Filter supplier

Large Image :  Aramid Nomex Dust Collector Filter Bags Envelope Shape Tube Shape Bag Filter

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: 160X4500

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 25 days
Payment Terms: T/T ,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Filter Material: Aramid / Nomex Needle Felt Emission Control: < 30 Mg / Nm3
Filter Particle Size: 15 Micron Working Temperature: < 210 Degree C
Working Life: 24-36 Months Weight: 550 G/ Sqm

Aramid Nomex Dust Collector Filter Bags Envelope Shape Tube Shape Bag Filter





Description:



Asphalt mixing plant specially applied Nomex filter bag ,water repellent treatment .Nomex filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life .



Nomex Filter bag is also widely applied in metal smelting furnace fume / gas extraction and filtration .





Applications:



Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .

NOMEX filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working  life.





Properties



1) Performs at high temperatures

Nomex filter bag  can be used continuously at operating temperatures up to 218°C (425°F) , and can handle higher temperature surges.



 2) Resists flexing and abrasion

Flex resistance of Nomex filter bag at room temperature is good, about equal to that of polyester filter bags;



3) Effect of moisture

Nomex filter bag  performs well at high operating temperatures with normal amounts of moisture. The wear life projections in the below graphs were developed using 6-10% H20.



 4) Resists Chemicals

Nomex filter bag  ,Aramid filter bag fier  resists attacks by mild acids, mild alkalis, and most hydrocarbons. In addition customers report it to be unaffected by fluorine compounds in gas effluent from metallurgical and rock processing operations.



 5) Dimensional Stability

Nomex filter bag ,Aramid filter bag  is one of the most dimensionally stable dust  filter bags  available. Fibers of Nomex properly manufactured and finished, should neither stretch nor shrink over 2% when operated at temperatures up to 218°C (425°F).



6) High temperatures

The most effective use of Nomex filter bag ,aramid filter bag is in high efficiency filtering systems  where effluent temperatures are above 250°F or in  systems with surges over 250°F. In hot gas filtration systems.





Specifications:



Article Name

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring





Competitive Advantage:



Speciality

1. High Temperature resistant

2. Resists flexing and abrasion

3. Effect of moisture

4. Good chemical resistance

5. Dimensional Stability

6. Flame resistance



Tailor service ,just let us know your request ,we will give exact recommendation .

  • What kind of product that showed on our website do you need? PTFE fiber, PTFE Sewing thread, PTFE membrane or dust filter cloth and dust filter bag?
  • If you want buy filter cloth or felt and filter bag, tell me if you need membrane lamination.
  • The size of dust filter and collect bag.
  • Flat Dimension.
  • Specs on Material.
  • Is it a Top or Bottom Load Collector?
  • Your  working conditions  such as temperature resistance, chemical resistance.
