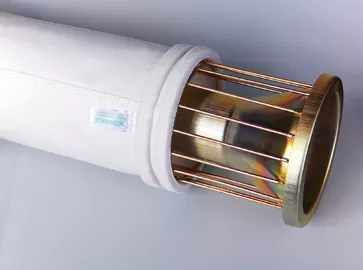

2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber

China 2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber supplier

Large Image :  2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS , ISO 9001 : 2008
Model Number: 160mmX6000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 25 days
Payment Terms: T/T ,L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Product Name: Dust Collector Bags Weight: 500g/m2
Thickness: 2.1mm Density: 0.24g/m³
Permeability: 150L/dm2.min Finishing: Singeing, Calendaring

2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber





Product Name  :  NOMEX dust collector bags

Weigh t: 500g/m2

Thickness : 2.1mm

Density: 0.24g/m³

Permeability : 150L/dm2.min

Finishing: Singeing, calendaring





dust collector filter bags Nomex filter bag for high temprature fume filtration





Description:

Dust collector filter bags ,Nomex filter bags

Introduction :


Nomex filter bags are made of 100% Meta-aramid / nomex fiber ,  it is the best choice for Asphalt plant dust collector system  ,  which is also called  Metamax filter bags ,  aramid filter bags  or baghouse filter bags.



Applications :


Being Metamax filter bags , nomex filter bags are widely used in asphalt industry, cement industry, chemical industry , Iron and steel industry , themal power industry ,  Aluminum industry , etc.



Features  :


Nomex filter bags features  excellent  anti-anrasion , good anti-acid and good  anti-alkali , and anti-high temperature



Advantages :


1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204 degree C  , works well .
3. As nomex filter bags, it is largely used in asphalt plants .
4.  With good air permeability and also can be adjusted by customers' specific request
5.  Being baghouse filter bags , they are installed in baghouse and with high-efficiency filtration .





Working principle :





2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber



Specifications


1. Material :with100% Meta-nomex fiber
2. Scrim:  with meta-aramid /nomex staple yarn
3. Finish treatment with singeing, calendering and heat setting.
4.  Air permeability (l/m2/s):   150~300
5. Temperature (degree C ):  Continue: 204, Instant :  240





Specifications:



Article Name

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring





Competitive Advantage:



1. High Temperature resistant

2. Resists flexing and abrasion

3. Effect of moisture

4. Good chemical resistance

5. Dimensional Stability

6. Flame resistance

2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber2 Micron Baghouse Dust Collector Filter Bags Of Meta - Aramid / Nomex Fiber
