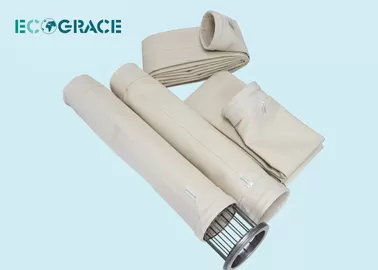

16 oz PPS Ryton Filtration Felt Dust Collector Filter Bags Power Plant Filter Bag

China 16 oz PPS Ryton Filtration Felt Dust Collector Filter Bags Power Plant Filter Bag supplier

Large Image :  16 oz PPS Ryton Filtration Felt Dust Collector Filter Bags Power Plant Filter Bag

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS , ISO 9001: 2008
Model Number: 130X7000 mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 7-25 days
Payment Terms: T/T ,L/C, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Filter Material: PPS / Ryton Filter Cloth Application: Ash Handling Dust Filtration In Power Plant
Operation Temperature: 190 Degree C Applied Industry: Coal Boiler , Bio-boiler
Material Origin: Japan , Germany Size Of Filter: Diameter 130mm , Length 7000mm.

16 oz PPS Ryton Filtration Felt Dust Collector Filter Bags Power Plant Filter Bag

ECOGRACE provide key filtration solutions about the needle felt filter media and filter bags for different industries,  like power generation , steel mill , gypsum plant, cement plant, metallurgy ,etc.

ECOGRCE  PPS filter media Ryton Filter bag  and PPS filter bags for thermal power generation plant , coal fired boiler . The good high temperature standby function and special chemical resistant function is the best and ideal choice for power generation plant boiler .

Specifications:


Series:

PPS 550 gsm

Material:

PPS ( Ryton ) 450 - 650g/sqm , 14 oz , 16 oz , 17 oz .

Fiber :

100% PPS / RYTON  fibre ( Toray / Toyobo, Japan original fibre, or Chinese fibre available )

Scrim:

100% PPS / RYTON staple fibre ( Toray / Toyobo, Japan original fibre, or Chinese fibre available )

Weight:

400 - 650g/m2  ( customize d)

Finishing:

Heat setting , single side singeing , calendering (double sides finishing would be available upon reques t)

Specifications:

Customized according to drawing / sample

Packaging:

Polybag in cartons

Applications:

Coal-fired power plant , waste incinteration plant, circulating fluidized bed boilers , etc.

Delivery Time:

7-20ays

Payment Terms:

 T/T , L/C


Below fiber performance index for your reference.



 Operating Temperature (°C  dry)

 Abrasion Resistance

Hydrolysis Resistance

 Alkali Resistance

Organic Acid Resistance

Mineral Acid Resistance

Oxidation Resistance (15%)

PPS

 190 / 200)

 Good

 Excellent

 Excellent

 Excellent

 Excellent

 Poor



How to choose material for filter bag with good price ?
Since every filter bag has its own characteristics and parameters, when we choose filter material for
dust collector filter bag, we have to know the following parameters :
(1) Working temperature
(2) Humidity
(3) Dust filter bag diameter
(4) Gas chemical properties
(5) Dust abrasiveness
(6) Filter's mechanical parameters
2.How to assure the product quality?
We will send the sample for your confirmation first, and then produce thete filters according to your requirement.
3.Can you provide free sample ?
Normally, our sample fee is free if its value less than $10.
However, you have to pay us the courier cost like: DHL , FEDEX, UPS, TNT .
4.Generally, what is the delivery?
Normally , the order will be delivered within 2 weeks after your deposit.

6.How do I know when shall I need to replace the filter bags ?
Monitor the inlet pressure. The pressure drop across a bag rises as the active surface area is used up. When the pressure starts to raise faster the filter bag is almost used up and should be replaced . Up to different working condition , but a good rule of thumb is to change bags when you see 8-12 PSI pressure drop (the difference in pressure between the filter's inlet and outlet).
7.How many times can I clean and reuse the filter bag?
Attempting to clean a filter bag will stretch the material. Some holes will get bigger and allow dust to get through. Other holes will get smaller, plug up faster, and start removing things from the product that are supposed to stay in it.
8.Do you offer volume /d istributor discounts?
We do offer volume discounts, but that is based on the quantities ordered and frequency of orders. Contact us in regards to volume discounts and we will gladly give you more details.
9.What shipments are available?
Normally, we ship goods by sea , air or express. Special requirement can also be acceptable.
(1) By sea: to your nearest sea port
(2) By air: to your nearest air port
(3) By express: ( UPS,DHL.FEDEX,TNT...) Door to door
