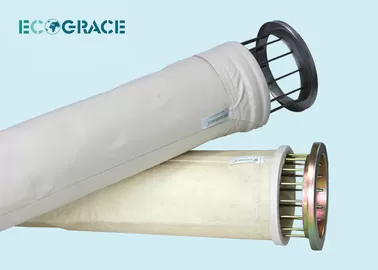

Heat Resistant Nomex Dust Collector Filter Bags In Asphalt Mixing

China Heat Resistant Nomex Dust Collector Filter Bags In Asphalt Mixing supplier

Large Image :  Heat Resistant Nomex Dust Collector Filter Bags In Asphalt Mixing

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO9001:2008
Model Number: Nomex 160-3000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or paper cartons
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs/month
Contact Now
Detailed Product Description
Application: For Asphalt Mixing, Etc. Working Temperature: 200 Degree
Abrasion Resistance: Excellent Thickness: 2.10 Mm
Resistance To Acids And Alkalis: Excellent Flame Resistance: Good

Heat Resistant Nomex Dust Collector Filter Bags In Asphalt Mixing





Detailed Product Description

Fiber:

Nomex

Size:

160-3000

Type:

Dust Collector Filter Bags

Weight:

500 Gsm

Thickness:

2.1mm

Continuous Operating Temperature:

200℃

Instant Service Temperature:

240℃

Replacement Period:

>18 Months





Brief introduction of nomex dust collector filter bag:

1. Material: Nomex filter material

2. Size: 160x3000mm

3. Working temperature: 200 degree C

4. Finish; PTFE dipping

5. Application; Cement industry, asphalt mixing, steel mill blast furnace



Nomex dust collector  filter bags is the special filter media can be applied in Asphalt mixing plant ,it is the

most cost effective filter bags for high temperture smoke. Nomex  filter bag  offerring one of the best total

economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function,

and long wearing life .



Technical specification of nomex dust collector filter bags:





Article Name

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring.Water and oil repellent treatment



Competitive advantages of nomex dust collector filter bags:



1. High Temperature resistant

It is  used in  continuously  operating temperatures up to 218°C , and Nomex filter bags  can handle

higher temperature surges.



2. Resists flexing and abrasion

Flex  and abrasion resistance function  of Nomex filter bag at ambient temperature is good.



3. Effect of moisture

Nomex filter bag  performs well at high operating temperatures with normal amounts of moisture. The

wear life projections in the below graphs were developed using 6-10% H20.



4. Good chemical resistance



5. Dimensional Stability

Nomex filter bag ,Aramid filter bag  is one of the most dimensionally stable dust  filter bags  available.

Fibers of Nomex properly manufactured and finished, should neither stretch nor shrink over 2% when

operated at temperatures up to 218°C (425°F).



6. Flame resistance



7. Will work very well in higher air to cloth ratio.

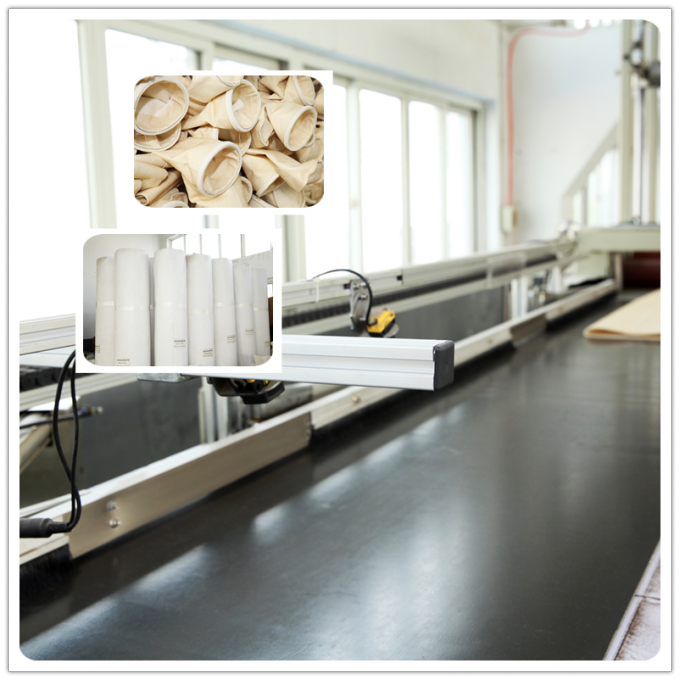

Production:



High Temperature Filter  Dust Collector Filter Bags Nomex Filter for Cement Industry

High Temperature Filter  Dust Collector Filter Bags Nomex Filter for Cement Industry
