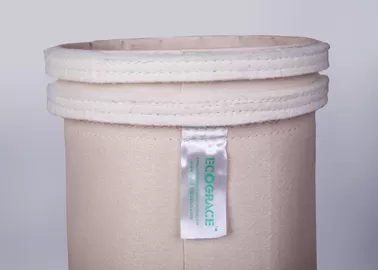

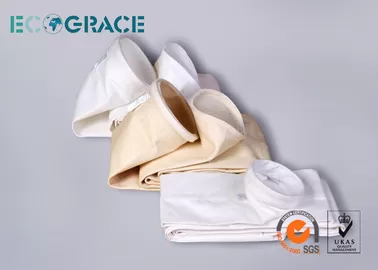

Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags

China Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags supplier
Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags supplier Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags supplier

Large Image :  Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO9001:2008
Model Number: Nomex 500

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or paper cartons
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs/month
Contact Now
Detailed Product Description
Application: High Temperature Fumes Filtration Abrasion Resistance: Excellent
Working Temperature: 190-210 Degree Chemical Resistant: Excellent
Thickness: 2.2 Mm Flame Retardant: Good

Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags



Brief introduction of nomex dust collector filter bag:
1. Material: Nomex bag filter
2. Size: As customers' requirements
3. Working temperature: 190 degree C - 204 degree C
4. Finish; PTFE dipping
5. Application; Cement industry, asphalt mixing, steel mill blast furnace

Nomex dust collector filter bags is the special filter media can be applied in Asphalt mixing plant ,it is the
most cost effective filter bags for high temperture smoke. Nomex filter bag offerring one of the best total
economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function,
and long wearing life .

Detailed Product Description

Fiber:

Nomex

Diameter:

120-180mm

Length:

2000-7000mm

Weight:

500 Gsm

Thickness:

2.2mm

Continuous Operating Temperature:

200℃

Instant Service Temperature:

240℃

Replacement Period:

>18 Months

Type:

Dust Collector Filter Bags






Technical specification of nomex dust collector filter bags:


Article Name

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.2

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring.Water and oil repellent treatment


Competitive advantages of nomex dust collector filter bags:

1. High Temperature resistant
It is  used in  continuously  operating temperatures up to 218°C , and Nomex filter bags  can handle
higher temperature surges.

2. Resists flexing and abrasion
Flex  and abrasion resistance function  of Nomex filter bag at ambient temperature is good.

3. Effect of moisture
Nomex filter bag  performs well at high operating temperatures with normal amounts of moisture. The
wear life projections in the below graphs were developed using 6-10% H20.

4. Good chemical resistance

5. Dimensional Stability
Nomex filter bag ,Aramid filter bag  is one of the most dimensionally stable dust  filter bags  available.
Fibers of Nomex properly manufactured and finished, should neither stretch nor shrink over 2% when
operated at temperatures up to 218°C (425°F).

6. Flame resistance

7.Will work very well in higher air to cloth ratio.

Production:

Nomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter BagsNomex Needle Felt Dust Collector Filter Bags Meta Aramid Filter Bags
