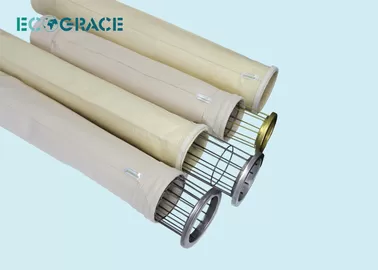

PTFE PPS Ryton Dust Collector Filter Bags For Power Plant Filter Systems

China PTFE PPS Ryton Dust Collector Filter Bags For Power Plant Filter Systems supplier

Large Image :  PTFE PPS Ryton Dust Collector Filter Bags For Power Plant Filter Systems

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO9001:2008
Model Number: PPS160-4000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or paper cartons
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Application: Coal Fired Boiler In Power Plant Working Temperature: 160 Degree C - 210 Degree C
Chemical Resistance: Excellent Abrasion Resistance: Good
Size: D 160mm X L 6000mm

PTFE PPS Ryton Dust Collector Filter Bags For Power Plant Filter Systems

ECOGRACE PPS RYTON Filter Bags :



Detailed Product Description

Fiber:

PPS

Size:

160-400

Type:

Dust Collector Filter Bags

Weight:

550 GSM

Thickness:

1.6mm

Continuous Operating Temperature:

160℃

Instant Service Temperature:

200℃

Replacement Period:

>18 Months



Brief introduction:


1. Material: PPS filter material
2. Size: 160x4000mm
3. Working temperature: 160 degree C - 200 degree C
4. Finish; Heatset and Signed one side
5. Application; Coal-fired boilers, waste incinerators, coking furnaces, kiln furnaces, chemical dry process.

PPS filter media is a type of high temperature resistance filter media, the temperature resistant up to
190 C  degree. PPS filter bags are with excellent chemical resistance except for oxidizing agent such as NO2 and
Oxygen.

Technical specification of PPS dust collector filter bags:



Series:

PPS550gsm

Material:

PPS (RYTON) 450 - 650g/sq.m needle felt

Fibre:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Scrim:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Weight:

400 - 650g/m2 (customized)

Finishing:

Heat setting, single side singeing, calendering (double sides finishing would be available upon request)

Specifications:

Customized according to drawing / sample

Packaging:

Polybag in cartons

Applications:

Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc.

Delivery Time:

7-45 days

Payment Terms:







 Operating Temperature (°C, dry)

 Abrasion Resistance

Hydrolysis Resistance

 Alkali Resistance

Organic Acid Resistance

Mineral Acid Resistance

Oxidation Resistance (15%)

PPS

160/ (200)

 Good

 Excellent

 Excellent

 Excellent

Excellent

Poor


Competitive advantages of PPS dust collector filter bags:

1. Favorable temperature resistance melting point 285ºC, working temperature 160ºC
Instantaneous operating temperature200ºC, limited oxygen index 34~35
2. Be suitable for the oxygen content below 15%
3. Oxide containing sculpture in the fuel or flue gas, now it has been proved that it was the fiber of
anti-acid, alkali, abrasion and chemicals
4. Containing moisture in the flue gas
5. Under the condition of 190~232ºC operating modes

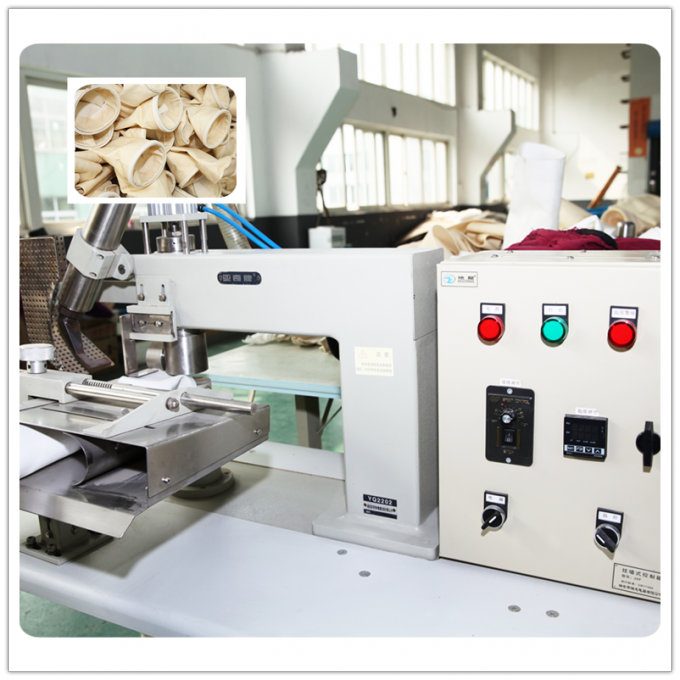

Production:

Chemical Resistant PPS Ryton Filter Bags 160x4000mm for Coking Furnaces

Chemical Resistant PPS Ryton Filter Bags 160x4000mm for Coking Furnaces
