Industrial Dust Collector Filter Bags Homo Acrylic / PAN 554 Filter Bags

China Industrial Dust Collector Filter Bags Homo Acrylic /  PAN   554 Filter Bags supplier
Industrial Dust Collector Filter Bags Homo Acrylic /  PAN   554 Filter Bags supplier Industrial Dust Collector Filter Bags Homo Acrylic /  PAN   554 Filter Bags supplier Industrial Dust Collector Filter Bags Homo Acrylic /  PAN   554 Filter Bags supplier

Large Image :  Industrial Dust Collector Filter Bags Homo Acrylic / PAN 554 Filter Bags

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO9001:2008
Model Number: Acrylic 500

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or paper cartons
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Application: Metal Smelting , Cement Plant Filtration System Working Temperature: 125 Degree C
Resistance To Hydrolysis: Excellent Thickness: 2.2 Mm
Acids And Alkalis Resistance: Excellent Finish: Heat Styling

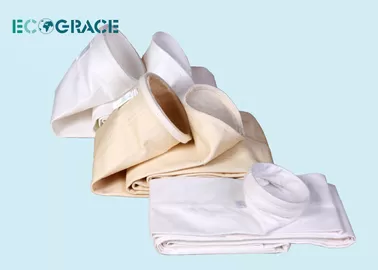

Industrial Dust Collector Filter Bags Homo Acrylic / PAN 554 Filter Bags



Brief introduction:

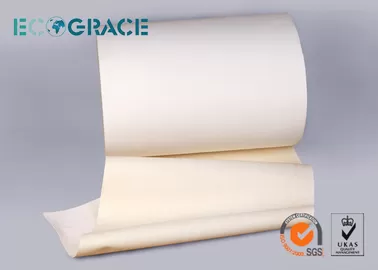

1. Material: Homopolymer acrylic filter material;

2. Size: As customers' requirements;

3. Working temperature: 125 degree C - 140 degree C;

4. Finish; Heat styling;

5. Application: non-ferrous metal process, smelting process, carbon black, cement production process, lime;

and fertilizer production process, coal dry process, and in the wet dedusting field.



Acrylic fibre Typical characteristics

- High mechanical characteristics;

- Excellent resistance to hydrolysis;

- Optimal heat stability both in dry and wet conditions;

- Optimal resistance to chemical agents;

- Extraordinary resistance to light, weathering, mildew and bacteria.





Detailed Product Description :

Fiber:

Homopolymer Acrylic

Diameter:

120-180mm

Length:

2000-7000mm

Weight:

500-650  gsm

Thickness:

2.4mm

Continuous Operating Temperature:

125℃

Instant Service Temperature:

140℃

Replacement Period:

>18 Months

Type:

Dust Collector Filter Bags







Industrial Acrylic Dust Collector Filter Bags , Dust Collection Filter Bags







Technical specification of acrylic dust collector filter bags:



Fiber:

Homopolymer Acrylic

Scrim:

Homopolymer Acrylic Spun yarn

Weight/Tolerance:(g/m2)

500

Thickness/Tolerance:(mm)

2.4

Width:(mm)

2150

Mechanical Finish

Heatset ang singed one side

  Air Permeability/Tolerance);(min/m2)

14

Typical Load @ peak(N/5mm)

MD:850%    XD:900%

Typical Strain@ Peak

MD:12%     XD:35%

Typical Strain@50N

MD:1.5%    XD:3%

Liner Shringkage@230℃

MD:3%     XD:3%





Acids Resistance

Good

Alkalis Resistance

Fair

Hydrolysis Resistance

Good

Oxidize Resistance

Good

Abrasion Resistance

Fair





Competitive advantages of acrylic dust collector filter bags:



1. Continuous operating temperature is below 125°C, instant temperature is not

more than 140°C;



2. Resistant to organic solvents, oxidants, inorganic and organic acids;



3. Hydrolysis resistance is strong;



4. Better replacement of Polyester Filter medias in acidic corrosion and high

moisture working conditions;



5. Good alkali resistance in temperature <150° C.



Production:



Industrial Dust Collector Filter Bags Homo Acrylic /  PAN   554 Filter Bags

Industrial Acrylic Dust Collector Filter Bags , Dust Collection Filter Bags
