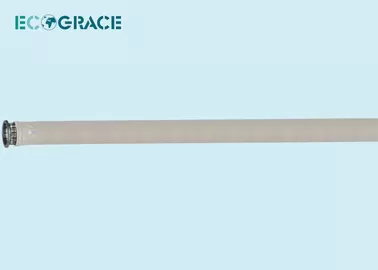

Power Plant Dust Collector Filter Bags PPS / Ryton 551 Filter Media

China Power Plant Dust Collector Filter Bags  PPS / Ryton 551 Filter Media supplier

Large Image :  Power Plant Dust Collector Filter Bags PPS / Ryton 551 Filter Media

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO9001:2008
Model Number: PPS 551

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or paper cartons
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Application: Power Plant Working Temperature: 190 Degree C -210 Degree C .
Thickness: 1.8 Mm Chemical Structure: PTFE Coating
Acid And Alkali Resistance: Good Flame Retardant: Good
Size: D160 X L 6000mm , D 130 X L7000mm

Power Plant Dust Collector Filter Bags PPS / Ryton 551 Filter Media



Detailed Product Description


Filter Cloth

PPS filter felt

Diameter:

120-180mm

Length:

2000mm-7000mm

Weight:

500GSM

Thickness:

1.8mm

Continuous Operating Temperature:

190℃

Instant Service Temperature:

210℃

Replacement Period:

>18 Months

Type:

Dust Collector Filter Bags







Boiler Flue Dust Collection PPS Filter Bag with PTFE Dispersion Finished





Brief introduction:

1. Material: PPS filter material

2. Size: Diameter 160 mmX 6000mm , Diameter 130 x 4500mm

3. Working temperature: 190 degree C - 230 degree C

4. Finish; Heat styling

5. Application:

• Coal - Fired Boilers in power plant , paper making plant .
• Municipal Solid Waste Boilers and Waste incinerator bag  filter
• Calciners / Catalysts
• Thermal power plant
• Waste to energy
• Iron and non ferrous Metal Industry.



Technical specification of PPS dust collector filter bags:



Compositions

PPS filtration Felt

Weight (g/ m2)

500

Thickness (mm)

1.8

Air permeability (L/m2/s)

200-300

Tensile strength
(N/5 20cm)

wrap

≥1250

weft

≥1350

Tensile Elongation(%)

wrap

≤30

weft

≤30

Broken strength
(Mpa/min)

2.6

Continuous working temperature(℃)

≤190

Short time Working temperature(℃)

230

Anti-acid

Excellent

Anti-alkali

Excellent

Anti-abrasion

Excellent

The stability of water solution

Excellent

Finishing treatment

High temperature hot pressing,Singeing





Competitive advantages of PPS dust collector filter bags:



1. Continuous gas continuous temperature is up to 190℃,instant heat resistant up to 230℃.



2. Chemical structure is simple,strong and stable



3. Excellent performance of acid and alkali resistance



4. Excellent hydrolysis resistance capability,and strong chemical stability



5. Good flame retardant and excellent heat resistance function



6. Disadvantage is that antioxidant performance of PPS(Ryton)filter bag is poor,it reacts to oxidation-corrosion



7. It is suitable for gas with O2 composition < 10%



Production:



Boiler Flue Dust Collection PPS Filter Bag with PTFE Dispersion Finished



Boiler Flue Dust Collection PPS Filter Bag with PTFE Dispersion Finished
