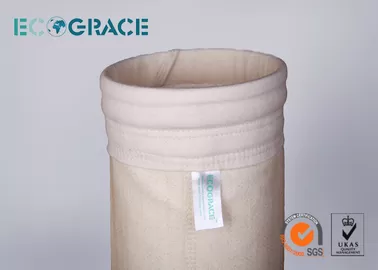

PPS 554 Dust Collector Filter Bags Power Plant Ash Handling System

China PPS 554  Dust Collector  Filter Bags  Power Plant  Ash Handling System supplier

Large Image :  PPS 554 Dust Collector Filter Bags Power Plant Ash Handling System

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO9001:2008
Model Number: PPS160-4000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or paper cartons
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Application: Power Plant Coal Boiler Ash Handling System Working Temperature: 160-190 Degree C
Acid And Alkali Resistance: Excellent Abrasion Resistance: Good
Thickness: 1.6 Mm Filter Efficiency: 99.9%

PPS 554 Dust Collector Filter Bags Power Plant Ash Handling System .

PPS filter bags is the most advantage products of ECOGRACE  , it is widely applied in the coal boiler ash handling system in power plant . The filter bags size including Diameter 130 x Length 6000mm , Diameter 160 mm x Length 6000mm.





Detailed Product Description

Fiber:

PPS filter felt

Size:

160-400

Type:

Dust Collector Filter Bags

Weight:

550 GSM

Thickness:

1.6mm

Continuous Operating Temperature:

160℃

Instant Service Temperature:

200℃

Replacement Period:

>18 Months





Brief introduction:


1. Material: PPS filter material
2. Size: 130x8000mm , 160 X 6000 mm
3. Working temperature: 160 degree C - 200 degree C
4. Finish; Heatset and Signed one side
5. Application; Coal-fired boilers, waste incinerators, coking furnaces, kiln furnaces, chemical dry process.

PPS filter media is a type of high temperature resistance filter media, the temperature resistant up to
190 C  degree. PPS filter bags are with excellent chemical resistance except for oxidizing agent such as NO2 and
Oxygen.

Technical specification of PPS dust collector filter bags:



Series:

PPS550gsm

Material:

PPS (RYTON) 450 - 650g/sq.m needle felt

Fibre:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Scrim:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Weight:

400 - 650g/m2 (customized)

Finishing:

Heat setting, single side singeing, calendering (double sides finishing would be available upon request)

Specifications:

Customized according to drawing / sample

Packaging:

Polybag in cartons

Applications:

Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc.

Delivery Time:

7-45 days

Payment Terms:







 Operating Temperature (°C, dry)

 Abrasion Resistance

Hydrolysis Resistance

 Alkali Resistance

Organic Acid Resistance

Mineral Acid Resistance

Oxidation Resistance (15%)

PPS

160/ (200)

 Good

 Excellent

 Excellent

 Excellent

Excellent

Poor


Competitive advantages of PPS dust collector filter bags:

1. Favorable temperature resistance melting point 285ºC, working temperature 160ºC
Instantaneous operating temperature200ºC, limited oxygen index 34~35
2. Be suitable for the oxygen content below 15%
3. Oxide containing sculpture in the fuel or flue gas, now it has been proved that it was the fiber of
anti-acid, alkali, abrasion and chemicals
4. Containing moisture in the flue gas
5. Under the condition of 160~200ºC operating modes

Production:

Industrial PPS / Ryton Filter Bags Dust Collection Bags Custom Made


PPS 554  Dust Collector  Filter Bags  Power Plant  Ash Handling System
