100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

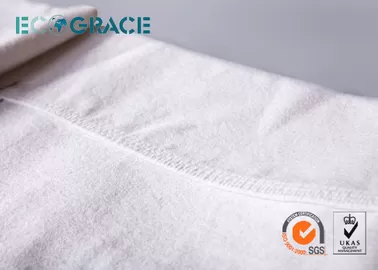

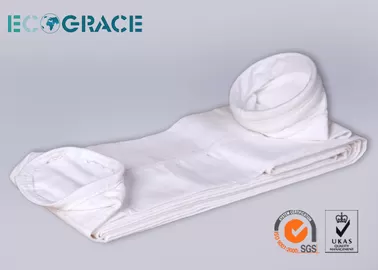

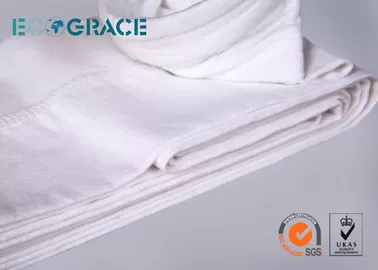

100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt

China 100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt supplier
100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt supplier 100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt supplier 100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt supplier

Large Image :  100 % PTFE 700 gsm Dust Collector Filter Bags PTFE Filtration Felt

Product Details:

Place of Origin: China, Shanghai
Brand Name: ECOGRACE
Certification: SGS, ISO9001
Model Number: PTFE 01

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags, 50 pcs/ bag
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pieces/ month
Contact Now
Detailed Product Description
Application: Power Plant , Waste Incinerator Filtration System Thickness: 1.2mm
Chemical Stability: Excellent Resistance To Hydrolysis: Excellent
Acid And Alkali Resistance: Good Working Temperature: 240-260 Degree C
Size Of Filter Bag: D 130 X L 5000 , D 150 X L 4000

100 % PTFE Filtration Felt 750 gsm  PTFE Dust Collector Filter Bags for powe plant ash handling system , waste incinerator burning filtration system .





Detailed Product Description

Filter Cloth
Filter Cloth

100% PTFE Filtration Felt

Weight:

700g/m2

Thickness:

1.2mm

Mechanical Finish:

Heat Styling

Air Permeability:

8-12m2/min

Typical Load @ Peak:

MD: 800, XD: 800 N/mm

Typical Load @ Strain:

MD: 18%, XD: 20%

Instant Operation Temperature:

240 Degree

Continous Operation Temperature:

260 Degree

Liner Shrinkage:

MD: 1.5%, XD: 1%




1, Material: 100% PTFE fiber
2, Thickness: 1.2mm
3, Maximum Operation Temperature: 240 degree
4, Maximum Surge Temperature: 260 degree
5, Fanish: Heat Styling
6, Application: Flue gas filtration



Application:


PTFE filtration Felt  is a very powerful material and it is usually used in the bag Filter condition. Like the flue gas filtration, in this condition, other material is not good enough. PTFE has good performance of heat resistance, abrasion resistance and also it has a stable chemical structure. Speaking of the chmical properties, PTFE stay non-reactiive in the environment of strong acids and alkalis.

Performance:

1, Excellent chemical stability.
2, Excellent resistance to hydrolysis.
3, Excellent performance of heat resistance.
4, Well strong acids and alkalis erosion.


Technical Information about PTFE Filter Bag



Series

PTFE Filter bag

Material

PTFE fiber

Max Operation Temperature

240 degree

Max Surge Temperature

260 degree

Weight

750g/ m2

Finish

Heat Styling

Thickness

1.2mm

Packaging

In woven bags

Applications

In flue gas filtration

Delivery Time

15-25 days

Payment Terms

 TT or L/C



Technical Information about Other Filter Bags




 Dust collector filter bag


Continuous temperature


Peak Temperature


Description


Resistance to Acids


Resistance to Alkalis


Resistance to Oxidation


PH Value


PP filter bag


90ºC


95ºC


PP


Excellent


excellent


restricted


1~14


Acrylic filter bag


125ºC


140ºC


DT


good


good


good


3~11


Polyester dust filter bag


150ºC


150ºC


PE


restricted


moderate


good


4~12


PPS filter bag


190ºC


200ºC


PPS


Excellent


excellent


moderate


1~14


Polyimide filter bag


240ºC


260ºC


P84


good


moderate


good


3~13


PTFE 100% filterbag


250ºC


280ºC


PTFE


Excellent


excellent


excellent


1~14

Fiberglass Filter bag

260ºC

300ºC

BQ

good

good

good


3~11






Their Application:

1, Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2, Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3, Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4,  Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine

material

recovery, liquid and solid separation.
