|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Delivery Time:||45 days|
|Payment Terms:||T/T ,L/C|
|Supply Ability:||200 sets /month|
pulse jet fabric filter,
pulse jet bag house

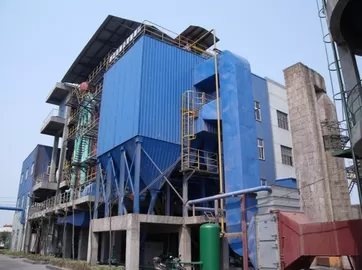

High Temperature Pulse Jet Bag Filter Dust Collector For Cement Plant
Model No. :GE-H Long filter pulse jet dust collector ,high temperature resistant
Application: Coal fired boiler applied dust collector
Dust type: Coal ash
Air flow :50000m³/h-200000m³/h
Gas Temperature :180℃ Gas Temperature
Filter bag chosen:PPS+PTFE
Working life of filter bag:3 years
A high collection efficiency, small footprint, stable, reliable performance, easy maintenance of large bag filter equipment.
PJDMC series of large pulse length bag filter is our technical personnel from domestic and foreign advanced technologies based on thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter. It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter dust removal equipment.
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
5, can be achieved without stopping the machine for bags, repair does not affect normal operation.
6, by way of the upper pumping bags, bags for improved operation and running.
1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.
5. thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace
