Replacement Bag House Filter Dust Collector With Polyester filter bag 5000- 30000 m3/h Air Flow

China Replacement Bag House Filter Dust Collector With Polyester filter bag 5000- 30000 m3/h Air Flow supplier

Large Image :  Replacement Bag House Filter Dust Collector With Polyester filter bag 5000- 30000 m3/h Air Flow

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO
Model Number: Pulse jet .

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: container
Delivery Time: 45 days
Payment Terms: T/T ,L/C
Contact Now
Detailed Product Description
Dust Collector: Pulse Jet Dust Collector Air Flow: 5000- 30000 M3/h
Working Temperature: < 130 Degree C Application: Mining Industry , Crushing , Conveying
Emission: <30 Mg/ M3 Bag Filter: Polyester Filter Bag

Replacement Bag House Filter Dust Collector With High Filtration Efficiency



Quick details:



ECOGRACE  baghouse dust collector

with high filtration efficiency,small footprint, stable, reliable performance, easy maintenance functions.



Our Baghouse dust collector are successful developed in coal fired boier,

cement mill, crushing system, steel mills, asphalt mxing plant, gypsum plant,etc.

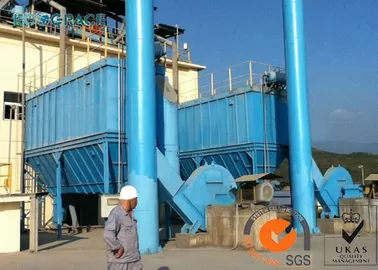

Pulse Jet Baghouse Dust Collector




Technical Specification:


Model Air volume(m3/h) Filter speed(m/min) Filter area(m2) Filter bag Resistance(Pa) Dust concentration(g/m3) Thermal insulation layer area
(m2)
Weight (kg)
32-3 6900 1.2-2.0 93 96 1470-1770 <1000 26.5 2880
32-4 8930 124 128 34 4080
32-5 11160 155 160 41 5280
32-6 13390 186 192 48.5 6480
64-4 17800 248 256 70 7280
64-5 22300 310 320 94 9960
64-6 26700 372 384 118 11640
64-7 31200 434 448 142 13320
64-8 35700 496 512 166 15000
96-4 26800 372 384 <1300 110 10452
96-5 33400 465 480 120 12120
96-6 40100 557 576 130 14880
96-7 46800 650 672 140 16920
96-8 53510 744 768 150 19810
96-9 60100 836 864 160 21240
96-2×5 66900 929 960 175 25200
96-2×6 80700 1121 1152 210 30240
96-2×7 94100 1308 1344 245 35280
96-2×8 107600 1494 1536 280 40320
96-2×9 121000 1681 1728 315 45360
96-2×10 134500 1868 1920 350 50400
128-6 67300 935 768 125 24120
128-9 100900 1402 1152 196 31680
128-10 112100 1558 1280 205 34680
128-2×6 34600 1869 1536 323 43920
128-2×7 15700 2181 1792 247 52680
128-2×8 179400 2492 2084 262 60000
128-2×9 201900 2804 2304 277 66480
128-2×10 224300 3115 2561 292 72000
128-2×11 247600 3427 2856 307 78480
128-2×12 269100 3728 3072 322 96400
128-2×13 291600 4050 3328 337 93600
128-2×14 314000 4361 3584 252 100800


Replacement Bag House Filter Dust Collector With Polyester filter bag 5000- 30000 m3/h Air Flow
Replacement Bag House Filter Dust Collector With Polyester filter bag 5000- 30000 m3/h Air Flow
