Baghouse Industrial dust collector for Foundary / Metallurgy / Metal Scap Melting

China Baghouse Industrial dust collector for Foundary / Metallurgy / Metal Scap Melting supplier

Large Image :  Baghouse Industrial dust collector for Foundary / Metallurgy / Metal Scap Melting

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS approved
Model Number: EDMC 1080

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: steel frame / container
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets / months
Detailed Product Description
Application: For Foundary / Metallurgy Air Flow: 100000 M3/H
Filter Speed: 1.0M/min Temperature Of The Gas: Ambient
Resistance: <1000 Pa Filtration Area: 2000 M2
Compressed Air Consumption: 0.5-0.7 M3/min Filter Efficiency: Up To 99.9%

Industrial Baghouse Dust Collector for Foundary / Metallurgy / Metal Scap Melting

Metal scrap melting furnace dust collector , foundary furnace dust collector system .





Detailed Product Description

Type Of Dust Collector:

Dust Collection Equipment

Cleaning Type:

Pulse Jet Cleaning

Gas Temperature:

Ambient To High Temperature

Material:

Carbon Steel

Air Flow:

10000 - 200000 M3/H

Filter Speed:

1.0-1.2 M/min

Filter Bags:

Nomex Filter Bag / Polyester Filter Bag

Shape:

Pulse Jet



Bag house industrial dust collector for  foundary / metallurgy / metal scap melting .Steel plant electronic furnace Industrial dust collection equipment . For different working condition in steel plant  , we will provide special and expert filtration solutions for the dust collection / dust extration systems for  the fumes generated from the melting furnace , sintering furnace , blast furnace / shaft furnace ,induction furnace .



Metallurgy industry , beside steel melting electronic furnace  , we will provide the filtration solutions dust collection system for  melting furnace for aluminum , copper ,  leads , iron crap , zinc , etc.  Our design ,manufacture , service scope including the suction hoods , baghouse dust collector ,ducting work , PLC control ,etc.



Brief Introduction :

ECOGRACE steel plant electronic furnace dust collector systems always with  air flow from 30000M3/H to 400000 M3/H ,  We provide  the key solution for both ambient temperature and high temperature . We will design the high efficiency hoods for good suction , and also the ducting works .



Dust Collector  technical specification :

Model No.

EDMC 120

Air Flow

100000 M3/H

Filter  speed

1.0M/min

Temperature of the gas

Ambient

Filtration area

2000 M2

Filter media

Polyester filter bag

Filter bag size

D160 x L 6000

Compressed air consumption

0.5-0.7 M3/min

Pulse valve size

 2.5  inch

Resistance

<1000 pa



Working Principle of  steel plant Dust collector Filter Unit :

1. The compostion of small dust collector unit  :

Fumes suction hoods , Baghouse dust collection system ,

Fan suction system , ducting workds ,

Dust discharging and dust conveyor systems

2. The filter cleaned  by solenoid valve pulse imported from US or Europe.

3. Filter cage  and filter bag will be fit in the assembled baghouse .

4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .



Advantage of ECOGRACE dust collector Filter Unit :

1. Easy operation maintenance.

2. Lower resistance , energy saving .

3. High filtration efficiency up to 99.99% , low  emission < 30 mg/ M3.

5. Lower system resistance up to < 1000 pa.

6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.

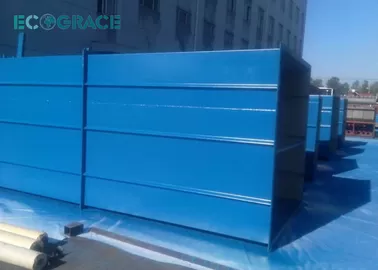

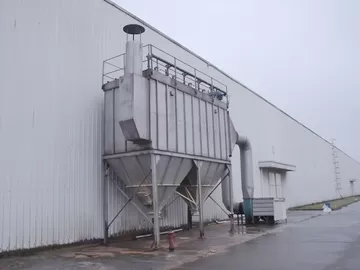

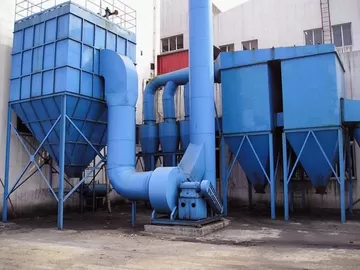

ECOGRACE project show :



Baghouse Dust Collector Equipment for Foundary / Metallurgy / Metal Scap Melting



Production and shipping  :



Baghouse Industrial dust collector for Foundary / Metallurgy / Metal Scap MeltingBaghouse Dust Collector Equipment for Foundary / Metallurgy / Metal Scap Melting
