High Efficiency Industrial Farbic Bag Filter Dust Collector For Material Mixing / Blending

China High Efficiency Industrial Farbic Bag Filter Dust Collector For Material Mixing / Blending supplier

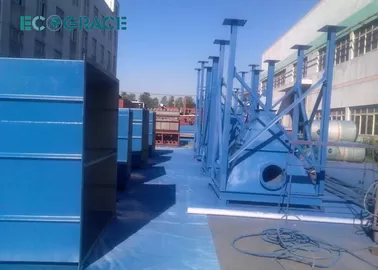

Large Image :  High Efficiency Industrial Farbic Bag Filter Dust Collector For Material Mixing / Blending

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS approved
Model Number: EPPC P series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: steel frame / container
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / months
Contact Now
Detailed Product Description
Application: For Material Mixing Air Flow: 20000-30000M3/H
Compressed Air Consumption: 0.5-0.7 M3/min Filtration Area: 500 M2
Emission: < 30 Mg/ M3 System Resistance: < 1000 Pa
Filter Speed: 1.20M/min

High Efficiency Industrial Farbic Bag Filter Dust Collector For Material Mixing / Blending





Detailed Product Description

Type Of Dust Collector:

Farbic Bag Filter

Cleaning Type:

Pulse Jet Cleaning

Gas Temperature:

Rom Temperature Ambient Temperature

Material:

5mm Steel Plate

Air Flow:

6000-60000M3/H

Filter Speed:

1.0-1.5 M/min

Filter Bags:

Polyester Filter Bag / Nomex Filter Bag

Shape:

Pulse Jet Dust Collector





Dust extraction industrial dust collector for material mixing / blending / batching  process. We customize desgin and produce  for  material handling process , mixing  , feeding , blending , batching process . The dust collected will be recycled  .Here , introduce our  pulse jet baghouse dust collector for general dust source in process of material handling , feeding , mixing , blending , batching . The air flow is usually from 6000 M3/ h to 60000 M3/h.



Brief Introduction :

ECOGRACE single baghouse dust collector Filter Unit is generally with smaller air flow from 6000 M3/H to 60000 M3/H , which is small in outside dimention , and we will design the most reasonable dimention for easy container loading and shipping , no need more installatino work at production site . It will be assembled in whole and put into the container , you can directly start when take out from container .



Dust Collector  technical specification :

Model No.

EDMC 120

Air Flow

20000-30000M3/H

Filter  speed

1.2 M/min

Temperature of the gas

Room ambient

Filtration area

500  M2

Filter media

Polyester filter bag / Nomex filter bag

Filter bag size

D130X3000

Compressed air consumption

0.5-0.7 M3/min

Pulse valve size

 1.5  inch

Resistance

<1000 pa



Working Principle of  dust collection systems  :

1. The compostion of small dust collector unit  :

Assmebled Filter Unit ,  Fan , PLC , air compressor . Rotary dust discharging.

2. The filter  cleaned  by solenoid valve pulse.  ASCO and GOYEN is the regular band we take .

3. Filter cage  and filter bag will be fit in the assembled baghouse .

4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .



Advantage of ECOGRACE dust collector Filter Unit :

1. Easy operation maintenance.

2. Assembled when EX work from our factory and no more  intallation work needed.

3. High filtration efficiency up to 99.99% , low  emission < 30 mg/ M3.

4. Energy saving

5. Lower system resistance up to < 1000 pa.

6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.

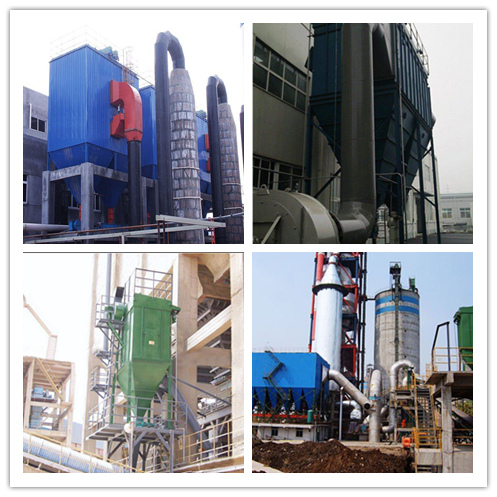

ECOGRACE project show :





High efficiency Industrial Dust Collector for Material Mixing / Blending / Batching

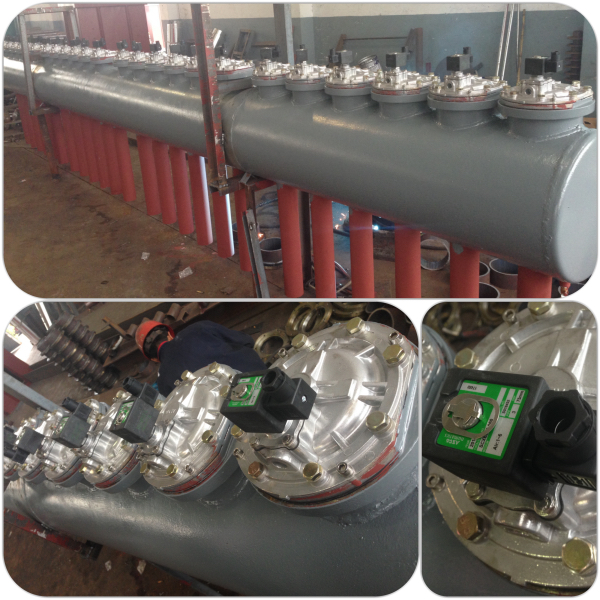

Production and shipping  :



High efficiency Industrial Dust Collector for Material Mixing / Blending / Batching
