Cement Kiln Air Bag Dust Collector Equipment With P84 PTFE Filter Bag Type

China Cement Kiln Air Bag Dust Collector Equipment With P84 PTFE Filter Bag Type supplier

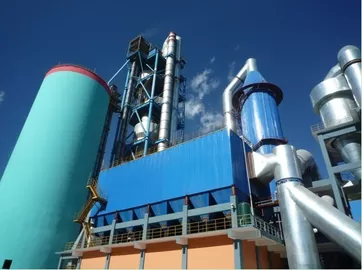

Large Image :  Cement Kiln Air Bag Dust Collector Equipment With P84 PTFE Filter Bag Type

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: GE-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: container
Delivery Time: 45 days
Payment Terms: T/T ,L/C
Supply Ability: 200 sets /month
Contact Now
Detailed Product Description

Cement Kiln Air Bag Dust Collector Equipment With P84 PTFE Filter Bag Type





Model No. :GE-S  New dry cement production line ,kiln bag dust collector

Application: New dry cement production line

Dust Type: Cement

Air flow :150000m³/h-1000000m³/h

Gas Temperature :200℃

Filter bag type : P84-PTFE

Working life of filter bag:3 years

Running resistance:1500pa





Description:



A high collection efficiency, small footprint, stable, reliable performance, easy maintenance of large bag filter equipment.

Baghouse Cement Kiln Bag Filter Dust Collector Equipment

PJDMC series of large pulse length bag filter is our technical personnel from domestic and foreign advanced technologies based on thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter. It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter  dust removal equipment.Baghouse Cement Kiln Bag Filter Dust Collector Equipment





Features:


1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.

2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.

3, the inlet and outlet air duct layout compact, air resistance.

4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.

5, can be achieved without stopping the machine for bags, repair does not affect normal operation.

6, by way of the upper pumping bags, bags for improved operation and running.





Applications:



1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.

5.thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace
