Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing

China Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing supplier
Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing supplier Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing supplier Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing supplier Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing supplier

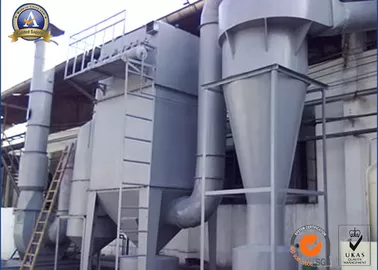

Large Image :  Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: Pulse jet Reverse type

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: container
Delivery Time: 45 days
Payment Terms: T/T ,L/C
Supply Ability: 200 sets /month
Contact Now
Detailed Product Description
Type Of Filter: Baghouse Dust Collector Application: Mining Area , Cement Plant , Metal Furnace
Emission: <30 Mg/ M3 Filter Efficiency: >99.99%
Filter Bag: Nomex Filter Bag / Polyester Filter Bag Dust Cleaning: On Line / Off Line

Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing



Quick Details of ECOGRACE Dust Collector, Industrial Dust Extraction System  :

1. ECOGRACE provide the dust collector from smaller size Filter Unit to bigger size dust collection systems, Fume extraction system.

Smaller Filter Unit with capacity of gas volume from 5000 M3/H to 30000M3/H.

The bigger dust collection system with capacity from 30000M3/H to 1000000M3/H.



2. ECOGRACE provide the complete service include design,manufacturing, installatin guide, trial running and after sale technical support.



3. ECOGRACE also provide the most effective and cost effective design for easy shipping, and provide the most cost effective design to establish the dust collecting systems for oversea customers.



4. Lower emission to 20mg/M3, the filtration efficiency up to 99.99%.



Applications:

1 Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.

5.thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace



Specifications:

Model

CGQM

32-3

CGQM

32-4

CGQM

2-5

CGQM

32-6

CGQM

64-4

CGQM

64-5

CGQM

64-6

CGQM

64-7

CGQM

64-8

Air volume (m3 /h)

6900

8930

11160

13390

17800

22300

26700

31200

35700

Total filter area (m2)

93

124

155

186

248

310

372

434

496

Chamber(pcs)

3

4

5

6

4

5

6

7

8

Quantity of filter bag(pcs)

32

64

Total quantity of filter bag(pcs)

96

128

160

192

256

320

384

448

512

Pulse valve

Quantity(pcs)

3

4

5

6

4

5

6

7

8

Specification(inch)

2

2 1/2

Specification of filter bag(Dmm*Lmm)

130*2450

Filter material

Based on flue gas properties

Filtration speed(m/min)

0.8~2.0(Adjustable)

Negative pressure(Pa)

less than 6000

Resistance(Pa)

1470~1770

Inlet dust concentration

less than 200

less than 1000

Blowing pressure(Mpa)

0.5~0.7

Compressed air consumption(Nm3/min)

0.27

0.37

0.46

0.55

1.2

1.5

1.8

2.1

2.4

Air-locking unit

Adjustable

Screw conveyor

No

Adjustable

Area of heat preservation(m2)

28.3

35.8

45.1

56.8

71

96.2

120.2

142.6

176

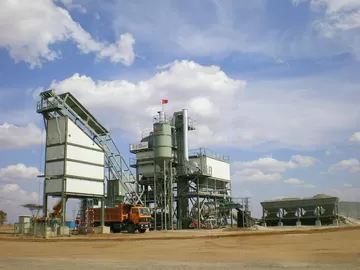

Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / CrushingBag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing

Bag Filter Dust Extraction Systems For Industrial Asphalt Mixing / Mining / Crushing
