High Tensile Nomex Dust Collector Filter Bags Anti - Static In Filtration System

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

High Tensile Nomex Dust Collector Filter Bags Anti - Static In Filtration System

China High Tensile Nomex Dust Collector Filter Bags Anti - Static In Filtration System supplier

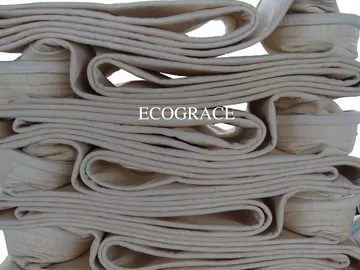

Large Image :  High Tensile Nomex Dust Collector Filter Bags Anti - Static In Filtration System

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: 160X4500

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 25 days
Payment Terms: T/T ,L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description

High Tensile Nomex Dust Filter Bag In Filtration System , Anti-Static





Description:



Cement kiln dust collector equipped   Nomex filter bag ,high temperature resistant    Nomex filter bag ,water repellent treatment .Nomex  filter bag  offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life .





Properties



1) Performs at high temperatures

Nomex filter bag  can be used continuously at operating temperatures up to 218°C (425°F) , and can handle higher temperature surges. However, to optimize dust filter  bag wearing  life, continuous temperatures of 204°C (400°F) and lower with minimum temperature surges are recommended.

2) Resists flexing and abrasion

Flex resistance of Nomex filter bag at room temperature is good, about equal to that of polyester fibers; after aging at temperatures of 121°C (250°F) and above its toughness if excellent. Nomex filter bag should give more than three times the wear life of polyester filter bags  at 121°C (250°F) and above.

3) Effect of moisture

Nomex filter bag  performs well at high operating temperatures with normal amounts of moisture. The wear life projections in the below graphs were developed using 6-10% H20. When operating in high moisture environments it would be worthwhile to investigate reduction of temperature to reduce wear life. 4) Resists Chemicals

Nomex filter bag  ,Aramid filter bag fier  resists attacks by mild acids, mild alkalis, and most hydrocarbons. In acid environments, evaluation of Nomex filter bags should be made to ensure that the fiber will perform acceptably before insulation. Nomex filter bag ,Aramid filter bag is  acid environment, at temperatures above the dew point, will outperform polyester. Temperature above the dew point should be maintained to minimize chemical attack on Nomex filter bag and the dust collector equipment.

5) Dimensional Stability

Nomex filter bag ,Aramid filter bag  is one of the most dimensionally stable dust  filter bags  available. Fibers of Nomex properly manufactured and finished, should neither stretch nor shrink over 2% when operated at temperatures up to 218°C (425°F).

6) High temperatures

The most effective use of Nomex filter bag ,aramid filter bag is in high efficiency filtering systems  where effluent temperatures are above 250°F or in  systems with surges over 250°F. In hot gas filtration systems.

Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags,dust filter bag ,bag filters,dust collector bags.





Applications:



Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .

NOMEX filter bag  offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working  life.





Specifications:



Article Name

Nomex needled felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring





Competitive Advantage:



1. High Temperature resistant

2. Resists flexing and abrasion

3. Effect of moisture

4. Good chemical resistance

5. Dimensional Stability

6. Flame resistance



Tailor service ,just let us know your request ,we will give exact recommendation .

  • What kind of product that showed on our website do you need? PTFE fiber, PTFE Sewing thread, PTFE membrane or dust filter cloth and dust filter bag?
  • If you want buy filter cloth or felt and filter bag, tell me if you need membrane lamination.
  • The size of dust filter and collect bag.
  • Flat Dimension.

Is it a Top or Bottom Load Collector?

  • Your  working conditions  such as temperature resistance, chemical resistance.
