Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media

China Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media supplier
Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media supplier Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media supplier Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media supplier

Large Image :  Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: SGS ISO
Model Number: 160 X6000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: CARTONS
Delivery Time: 2 WEEKS
Payment Terms: TT LC
Supply Ability: 10000 PER MONTH
Contact Now
Detailed Product Description
Product Name: Dust Collector Filters Material: PPS (Ryton)
Heat Resistance: 200°C Feature: Baghouse Filter Bags
Certification: SGS ISO Application: Power Plant Dust Collection System
Size :: 130 Mm X 8000mm

PPS / Ryton Filter Bag Dust Collector Filter 130 X 8000 PPS 554 Filter Media

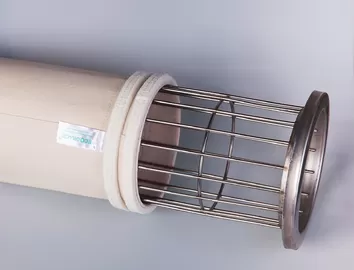

ECOGRACE Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, filter cage , mouth of elastic ring, etc.



 The diameter of the Dust filter bag is 115mm -200mm , length is 2000mm - 9000mm, the specifications of the normal  filter bag is 120 - 160 mm diameter, 2000 - 8000mm length.

dust filter bag

The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference. dust filter bag





Main Parameters Modle No. PPS Needle Felt
Specifications
Weight(g) 500
Material PPS Short Fiber
Thickness(mm) 1.8
Ventilation Property(L/m2/S) 200-300
Breaking Strengh Horizontally 1250
Vertrcally 1350
Breaking Elongation Horizontally 40
Vertrcally 60
Suitable Continually Using Temperature Horizontally 190
Vertrcally 220
Finishing Heatset/ Carlende



For Coal Fired Boiler Power Plant   , Incineration Power Plant





With PTFE membrane, our filter bags provide near zero emissions for waste processing and power station boiler. Whether you use standard or low grade coals, wood or tires in your boiler, or operate a chemical, hazardous, or medical waste incinerator, all we can deliver consistently high airflow over the life of the filter bags for your application. dust filter bag

dust filter bag

Ryton Filter Bag Dust Collector Filter 130 X 8000 mm PPS 554 Filter Media
