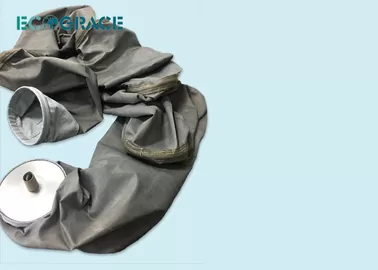

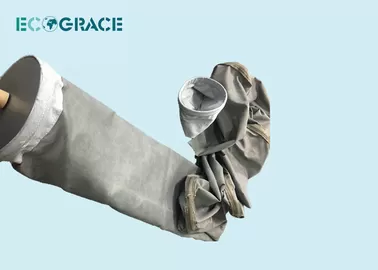

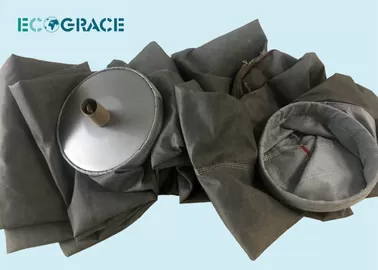

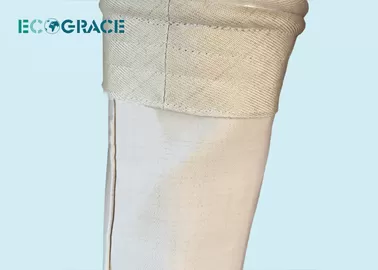

Fiberglass Filter Bag Dust Collector Filter Bags PTFE Membrane Acid Resistant

China Fiberglass Filter Bag Dust Collector Filter Bags PTFE Membrane Acid Resistant supplier

Large Image :  Fiberglass Filter Bag Dust Collector Filter Bags PTFE Membrane Acid Resistant

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001,SGS
Model Number: 130X3600

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags, 50 pcs/ bag
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 pieces/ month
Detailed Product Description
Application: Cement Kiln , Steel Furnace , High Temperature Fumes Filter High Temperature Resistance: Excellent 260-280 Degree C
Max Operation Temperature: 260 Degree Chemical FInish: EPTFE Membrane
Thickness: 0.9 Mm Filter Cloth: Woven Fiberglass Filter Cloth
Weaving: Plain , Twill Weight: 350 Gsm -800 Gsm

Fiberglass Filter Bag Dust Collector Filter PTFE Membrane Acid Resistant



ECOGRACE Fiberglass filter bag is the besst filter material for dust filtration of furnace, because its maximum operation temperature can reach to 260 degree and maximum surge temperature 280 degree, which means filter bags made from fiberglass can stal well worked under the temperature of 260 degree. What's more, it also has an excellent performance of abrasion resistance. So it is suitbale for furnace.



Detailed Product Description



Fiber:

Fiberglass

Weight:

775g/m2

Application

Cement kiln filter bag ,

induction furnace filter bag

Finishing

PTFE membrane

Maximum Operation Temperature:

260 Degree

Maximum Surge Temperature:

280 Degree

Abrasion Resistance:

Excellent







Introduction of Fiberglass Filter Bag



1, Material: Fiberglass

2, Thickness: 0.9mm

3, Maximum Operation Temperature: 260 degree

4, Maximum Surge Temperature: 280 degree

5, Chemical Fanish: PTFE member

6, Weight: 775g/m2



Application:



Fiberglass filter bag is the besst filter material for dust filtration of furnace, because its maximum operation temperature can reach to 260 degree and maximum surge temperature 280 degree, which means filter bags made from fiberglass can stal well worked under the temperature of 260 degree. What's more, it also has an excellent performance of abrasion resistance. So it is suitbale for furnace.



Performance:



1, Extremely excellent performance of high temperature.

2, Poor resistance to oxidize.

3, Excellent performance of abrasion resistance.

4, Fair resistance to acids.





Technical Information about Fiberglass Filter Bag



Type

Fiberglass  Filter bag

Abrasion resistance

Excellent

Max Operation Temperature

260 degree

Max Surge Temperature

280 degree

Heat resistance

Extremely excellent

Chemical FInish

ePTFE Dispersion

Thickness

0.9mm

Packaging

In woven bags

Application

Dust filtration of furnace

Delivery Time

15-30 days

Payment Terms

 TT or L/C





Technical Information about Other Filter Bags




 Dust collector filter bag


Continuous temperature


Peak Temperature


Description


Resistance to Acids


Resistance to Alkalis


Resistance to Oxidation


PH Value


PP filter bag


90ºC


95ºC


PP


Excellent


excellent


restricted


1~14


Acrylic filter bag


125ºC


140ºC


DT


good


good


good


3~11


Polyester

dust filter bag


150ºC


150ºC


PE


restricted


moderate


good


4~12


PPS filter bag


190ºC


200ºC


PPS


Excellent


excellent


moderate


1~14


Nomex filter bag


210ºC


190ºC


Nomex


good


moderate


good


3~13


PTFE 100% filterbag


250ºC


280ºC


PTFE


Excellent


excellent


excellent


1~14

Fiberglass Filter bag

260ºC

300ºC

BQ

good

good

good


3~11








Their Application:



1, Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2, Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3, Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4,  Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine

material

recovery, liquid and solid separation.





Brief Introduction of our Manufactory



We are a manufactory built in ten years ago and we have been specilized in the filter bag during the whole ten years. Every product we sell has been inspected by our QC, therefore our prodduct is highly qualified. And we enjoy a good repupation in and out of our country. With the development of ecology, the environment will get worse and worse. What we do is not to earn money but to protect the environment by our products. We do hope to improve the technology and make the world more beautiful.



Our Advantages:



1, Professional and patient reply for the consultations.

2, High qualified products.

3, Competitive price against other suppliers.

4, Professional instruction during the installation.

5, Continuous and stable after-sale service.

6, Oversea service available.

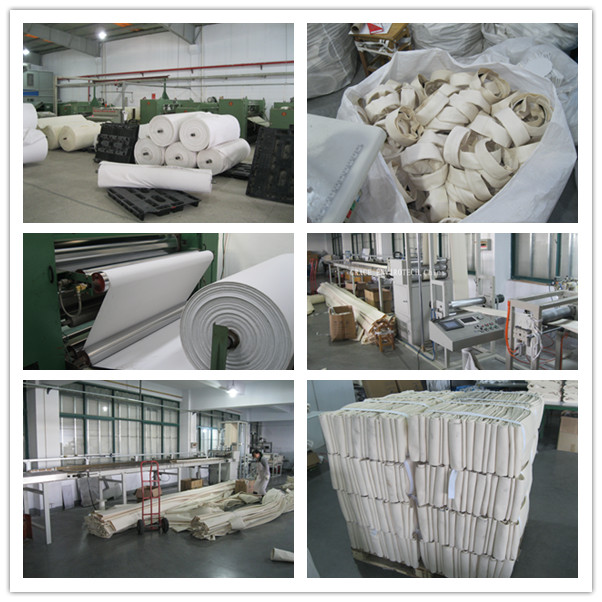

Pictures of Production Site:
