Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Dust Collector Filter

China Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Dust Collector Filter supplier
Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Dust Collector Filter supplier Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Dust Collector Filter supplier

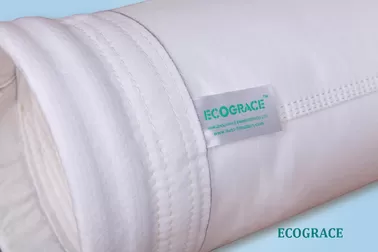

Large Image :  Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Dust Collector Filter

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001,SGS
Model Number: 160X6000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 pieces/ month
Contact Now
Detailed Product Description
Application: Cement Plant, Industrial Furance Working Temperature: 260 Degree
Mechanical Finish: EPTFE Member Resistance To The Acids And Alkails: Excellent
Heat Resistance: Excellent Thickness: 1.4 Mm

Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Filter Bags



Competitive Advantages of PTFE Membrane Bag Filter

1, Great chemical stability
PTFE member bag filter has an good resistance to the acids and alkails, it won't lower down the dust collection efficiency in a bad working environment thanks to its stable chemical structure.

2, Excellent Heat Resistance
For the PTFE membrane bag filter, its maximum operation can reach 260 degree and maximum surge temperature 280 degree, which makes it suitable for the high temperature gas.

3, Fantastic Dust Collection Efficiency
There is a membrane on the PTFE filter bag, which can improve the dust collection further.

4, Excellent Abrasion Resistance
PTFE is famous for its well tear resistance.



Detailed Product Description

Fiber:

PTFE

Weight:

775g/m2

Mechanical Finish:

EPTFE Member

Typical Load:

MD: 220, XD: 120

Liner Shrinkage:

MD: 1%, XD: 1%

Abrasion Resistance:

Excellent

Specification:

160*6000mm

Maximum Operation Temperature:

260 Degree

Maximum Surge Temperature:

280 Degree







Brief Introduction of PTFE Membrane Bag Filter
1, Material: PTFE
2, Size: 160*6000mm
3, Working Temperature: 260-280 degree
4, Weight: 775g/m2
5, Mechanical Finish: ePTFE member
6, Application: Cement plant, industrial furance

Technical Information of PTFE Membrane Bag Filter:



Article Name

PTFE needled felt

Ingredients

Fiber

100% PTFE shot fiber

Scrim

100% PTFE filament yarn

Weight

g/m2

775

Thickness

mm

1.4

Density

g/m³

0.18

Permeability

L/dm2.min

120

Tensile breaking

strength(N/5cm)

Warp

≥1000

Weft

≥1200

Elongation @200N/5cm

Warp

<8

Weft

<8

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤1

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



ePTFE member




Production Site
 Industrial PTFE Membrane Filter Bags / Polyester Needle Felt Dust Collector Filter
